New disk based on ADE disk snapshot doesn't have ADE enabled?

Hi everyone,

I would like to make sure if this is an intended behavior when a new disk that was based on Azure Disk Encryption (ADE) disk snapshot.

I have an ADE VM that I did a snapshot of its OS disk. I did confirm that it has ADE enabled.

Then I created a new disk based on the snapshot.
And finally I created a VM with that new disk attached.
But when I checked the VM's disk properties, it has the ADE as "Not Enabled."

Is this the intended behavior? Just want to make sure.

Thank you

  1. Keshavulu Dasari 4,925 Reputation points • Microsoft External Staff • Moderator

    Hi Handinata Tanudjaja ,

    If you have any other questions or are still running into more issues, let me know in the "comments" and I would be happy to help you.

  2. Keshavulu Dasari 4,925 Reputation points • Microsoft External Staff • Moderator

    Hi Handinata Tanudjaja ,

    If you have any other questions or are still running into more issues, let me know in the "comments" and I would be happy to help you.

  3. HandinataTanudjaja-6677 380 Reputation points

    Thank you for the answer.
    I actually found the issue why the disk didn't stay enabled.
    What I need to do is to create the VM from the disk page. That will make the ADE stays enabled actually.

  4. Keshavulu Dasari 4,925 Reputation points • Microsoft External Staff • Moderator

    @ Handinata Tanudjaja,

    Great that out! Yes, creating the VM directly from the disk page ensures that the ADE settings are retained.

    Please do not forget to "Accept the answer” and “up-vote” wherever the information provided helps you, this can be beneficial to other community members ,. Your contribution is highly appreciated.__
    __
    If you have any other questions or are still running into more issues, let me know in the "comments" and I would be glad to assist you

Sign in to comment

1 answer

  1. Keshavulu Dasari 4,925 Reputation points • Microsoft External Staff • Moderator

    Hi Handinata Tanudjaja ,

    Yes, this behavior is expected. When you create a new disk from a snapshot of an Azure Disk Encryption enabled disk, the encryption settings do not automatically carry over to the new disk. You need to re-enable ADE on the new disk after it has been created

    To ensure the new disk has ADE enabled,

    1.Attach the new disk to a VM.

    2.Enable ADE on the new disk using the Azure portal, PowerShell, or CLI.

    This process ensures that the new disk is encrypted and meets your security requirements.

    For more information:

    https://learn.microsoft.com/en-us/azure/virtual-machines/image-version-encryption?tabs=PowerShell

    https://learn.microsoft.com/en-us/azure/virtual-machines/disk-encryption-overview

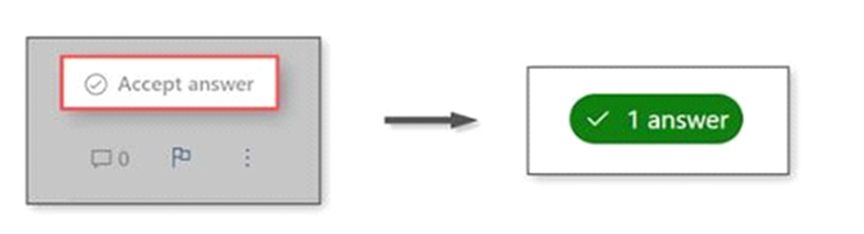

    Please do not forget to "Accept the answer” and “up-vote” wherever the information provided helps you, this can be beneficial to other community members.

    👁 User's image

    If you have any other questions or are still running into more issues, let me know in the "comments" and I would be happy to help you.
