Vector search

Vector search, also known as vector similarity search or nearest neighbor search, is a technique used to find the most similar items in a collection of data based on their vector representations. Memgraph implements a READ_UNCOMMITTED isolation level specifically for vector indices. While the main database can operate at any isolation level, the vector index specifically operates at READ_UNCOMMITTED. This design maintains all transactional guarantees at the database level. Only the vector index operations use this relaxed isolation level, ensuring the database’s ACID properties remain intact for all other operations. Memgraph supports vector indexes on both nodes and edges. Both use the same single-store pattern: the vector value is stored only in the vector index backend (USearch), and the property store keeps only a reference (a vector index ID). This avoids duplicating vector data between the property store and the index. The creation syntax (CREATE VECTOR INDEX vs. CREATE VECTOR EDGE INDEX) and the search procedure (vector_search.search() vs. vector_search.search_edges()) differ between the node and the edge variant; DROP VECTOR INDEX and SHOW VECTOR INDEX INFO work for both.

Vector search is commonly used as a retrieval technique in RAG systems to find entities based on semantic similarity rather than exact matches.

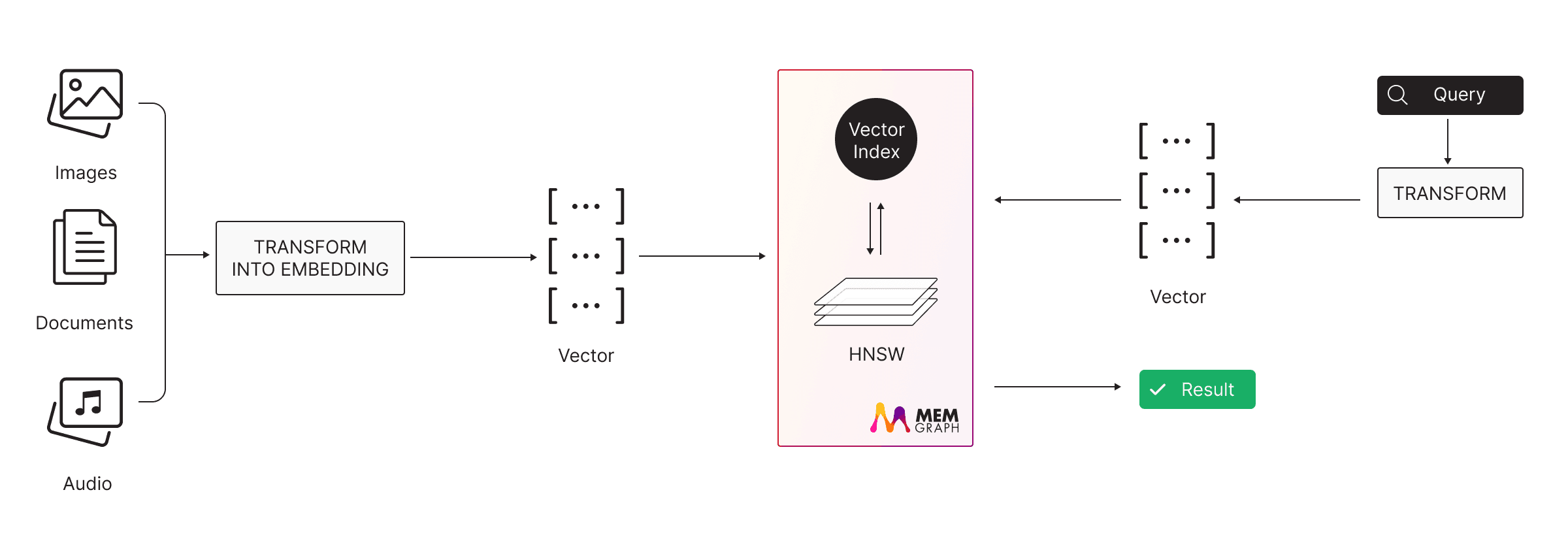

👁 vector-search-workflow

Create vector index

To run vector search, first create a vector index.

Vector index on nodes

Vector indexes on nodes are created with the CREATE VECTOR INDEX command. You need to:

1. Provide the index name
2. Specify the label and property it applies to
3. Define the vector index configuration

Example:

CREATE VECTOR INDEX vector_index_name ON :Label(embedding) WITH CONFIG {"dimension": 256, "capacity": 1000};

dimension and capacity are mandatory.

Vector index on edges

To create a vector index on edges, use:

CREATE VECTOR EDGE INDEX vector_index_name ON :EDGE_TYPE(embedding) WITH CONFIG {"dimension": 256, "capacity": 1000};

Index on multiple labels or edge types

By default, a vector index targets a single label (for nodes) or a single edge type (for edges). You can also index a combination of labels or edge types, or every entity that has the property regardless of its labels. The matching mode is determined by the shape of the ON clause:

The colon before each name after the first one is optional, so :Label1|Label2 and :Label1|:Label2 are equivalent.

For nodes, all four shapes are available:

// any of the listed labels
CREATE VECTOR INDEX or_index ON :Article|Blog(embedding) WITH CONFIG {"dimension": 256, "capacity": 1000};

// all of the listed labels
CREATE VECTOR INDEX and_index ON :Article&Published(embedding) WITH CONFIG {"dimension": 256, "capacity": 1000};

// every node that has the property
CREATE VECTOR INDEX wildcard_index ON (embedding) WITH CONFIG {"dimension": 256, "capacity": 1000};

For edges, the single, any (|) and wildcard shapes work the same way, but the all (&) shape is rejected with an error, because an edge always has exactly one type and could never match more than one:

CREATE VECTOR EDGE INDEX or_edge_index ON :KNOWS|LIKES(embedding) WITH CONFIG {"dimension": 256, "capacity": 1000};
CREATE VECTOR EDGE INDEX wildcard_edge_index ON (embedding) WITH CONFIG {"dimension": 256, "capacity": 1000};

A node or edge can match several overlapping indexes at once (for example, a wildcard index and a label-specific index on the same property). Such an entity is kept in every matching index, and inserts, updates and deletes are propagated to all of them. When a node loses one of several labels that qualified it for an any index, it remains in the index as long as it still has another matching label.

Configuration parameters

The following options apply to vector indexes on both nodes and edges:

• dimension: int ➡ The dimension of vectors in the index.
• capacity: int ➡ Minimum capacity for the vector index, which prefers powers of two and is adjusted internally for optimal performance but will be at least the given value.
• metric: string (default=l2sq) ➡ The similarity metric used for the vector search. The default value is l2sq (squared Euclidean distance).
• resize_coefficient: int (default=2) ➡ When the index reaches its capacity, it resizes by multiplying the current capacity by this coefficient, if sufficient memory is available. If resizing fails due to memory limitations, an exception will be thrown. Default value is 2.
• scalar_kind: string (default=f32) ➡ The scalar kind used to store each vector component. Smaller types reduce memory usage but may decrease precision.

Using parameters for configuration

The WITH CONFIG map accepts query parameters, both for the whole map and for individual values. This lets a client supply the configuration at query time without rebuilding the Cypher string.

Pass the entire config as a parameter:

CREATE VECTOR INDEX idx ON :Label(embedding) WITH CONFIG $config;

with $config bound by the client to a map such as {dimension: 128, capacity: 1000, metric: "cos"}.

Or parameterize individual values:

CREATE VECTOR INDEX idx ON :Label(embedding) WITH CONFIG {"dimension": $dim, "capacity": $cap};

Both forms work for CREATE VECTOR INDEX and CREATE VECTOR EDGE INDEX.

Using a function for configuration

Instead of a static map literal, you can pass a query module function that returns the configuration map. This lets you centralize index configurations and reuse them across queries.

Any @mgp.function that returns a map containing at least the mandatory dimension and capacity fields can be used.

For example, given a query module vector_index_config defined as:

import mgp

@mgp.function
def default_config() -> mgp.Map:
 return {"dimension": 128, "capacity": 1000}

@mgp.function
def config(dimension: int, capacity: int, metric: str = "l2sq", scalar_kind: str = "f32") -> mgp.Map:
 return {"dimension": dimension, "capacity": capacity, "metric": metric, "scalar_kind": scalar_kind}

You can use these functions when creating vector indexes:

CREATE VECTOR INDEX idx ON :Label(embedding) WITH CONFIG vector_index_config.default_config();

CREATE VECTOR INDEX idx ON :Label(embedding) WITH CONFIG vector_index_config.config(128, 1000, "cos");

The function is evaluated at index-creation time. Both the node and edge index variants support this syntax.

Run vector search

To run vector search, call the vector_search query module: use vector_search.search() for a vector index on nodes and vector_search.search_edges() for a vector index on edges.

Show vector indices

To retrieve information about vector indices, use vector_search.show_index_info() procedure. Additionally, the same information can be retrieved with the SHOW VECTOR INDEX INFO query.

Output:

• index_name: string ➡ The name of the vector index.
• label: string ➡ The label (or edge type) filter the vector index is defined on. For multi-label, edge-type or wildcard indexes this shows the filter shape: * (wildcard), :Label (single), :Label1|Label2 (any), or :Label1&Label2 (all).
• property: string ➡ The name of the property on which the vector index is indexed.
• dimension: int ➡ The dimension of vectors in the index.
• capacity: int ➡ The capacity of the vector index.
• metric: string ➡ Similarity metric used for vector search.
• size: int ➡ The number of entries in the vector index.
• scalar_kind: string ➡ The scalar kind used for each vector element.
• index_type: string ➡ The type of the index. For a vector index on nodes, the output is label+property_vector; for a vector index on edges, it is edge-type+property_vector.

Usage:

CALL vector_search.show_index_info() YIELD * RETURN *;

or

SHOW VECTOR INDEX INFO;

Query vector index

Use vector_search.search() for a vector index on nodes and vector_search.search_edges() for a vector index on edges. These procedures return the closest vectors to a query vector based on the index’s similarity metric.

Input:

• index_name: string ➡ The vector index to search.
• limit: int ➡ The number of nearest neighbors to return.
• search_query: List[float|int] ➡ The vector to query in the index. Providing a different type will result in an exception.

Output:

Vector index on nodes:

• distance: double ➡ The distance from the node to the query.
• node: Vertex ➡ A node in the vector index matching the given query.
• similarity: double ➡ The similarity of the node and the query.

Vector index on edges:

• distance: double ➡ The distance from the edge to the query.
• edges: Relationship ➡ An edge in the vector index matching the given query.
• similarity: double ➡ The similarity of the edge and the query.

Usage:

Vector index on nodes:

CALL vector_search.search("index_name", 1, [2.0, 2.0]) YIELD * RETURN *;

Vector index on edges:

CALL vector_search.search_edges("index_name", 1, [2.0, 2.0]) YIELD * RETURN *;

Similarity metrics

The following table lists the supported similarity metrics for vector search. These metrics determine how similarities between vectors are calculated. Default type for the metric is l2sq (squared Euclidean distance).

Cosine similarity

You can calculate cosine similarity directly in queries using the vector_search.cosine_similarity() function. This is useful when you need to compute similarity between vectors without creating a vector index.

Usage:

RETURN vector_search.cosine_similarity([1.0, 2.0], [1.0, 3.0]) AS similarity;

Scalar kind

The scalar_kind setting determines the data type used for each vector element in the index (USearch). By default, the scalar kind is set to f32 (32-bit floating point), which provides a good balance between precision and memory usage. Alternative options, such as f16 for lower memory usage, allow you to fine-tune this tradeoff based on your specific needs.

Monitor vector index memory

Memgraph tracks vector index memory separately from the rest of the graph data. You can inspect both from SHOW STORAGE INFO:

SHOW STORAGE INFO;

Two instance-level fields are relevant:

• query+graph_memory_tracked — process-wide memory used by graph structures (vertices, edges, properties) and query execution.
• vector_index_memory_tracked — process-wide memory used by vector index embeddings stored in the index backend.

Together, these two fields sum to memory_tracked (the total tracked allocation). The instance-level --memory-limit applies to the combined total: if inserting a vector would exceed the limit, Memgraph throws a Memory limit exceeded error.

To inspect the same split for a single database, use SHOW STORAGE INFO ON CURRENT DATABASE (or ON DATABASE <name>) and read its per-database graph_memory_tracked, query_memory_tracked and vector_index_memory_tracked fields.

Drop vector index

Vector indices are dropped with the DROP VECTOR INDEX command. You need to give the name of the index to be deleted.

DROP VECTOR INDEX vector_index_name;

Example

Here is a simple example of vector search usage.

docker run -p 7687:7687 -p 7444:7444 memgraph/memgraph-mage:latest

docker run -p 3000:3000 memgraph/lab:latest

CREATE VECTOR INDEX index_name ON :Node(vector) WITH CONFIG {"dimension": 2, "capacity": 1000, "metric": "cos", "resize_coefficient": 2, "scalar_kind": "f16"};

CALL vector_search.show_index_info() YIELD * RETURN *;

SHOW VECTOR INDEX INFO;

+----------+-----------+-------------+---------+----------+------+-------------+-------------------------+
| capacity | dimension | index_name | label | property | size | scalar_kind | index_type |
+----------+-----------+-------------+---------+----------+------+-------------+-------------------------+
| 2048 | 2 | "index_name"| ":Node" | "vector" | 0 | "f16" | "label+property_vector" |
+----------+-----------+-------------+---------+----------+------+-------------+-------------------------+

CREATE (n:Node {vector: [2, 2]});

CALL vector_search.show_index_info() YIELD * RETURN *;

+----------+-----------+-------------+---------+----------+------+-------------+-------------------------+
| capacity | dimension | index_name | label | property | size | scalar_kind | index_type |
+----------+-----------+-------------+---------+----------+------+-------------+-------------------------+
| 2048 | 2 | "index_name"| ":Node" | "vector" | 1 | "f16" | "label+property_vector" |
+----------+-----------+-------------+---------+----------+------+-------------+-------------------------+

CALL vector_search.search("index_name", 1, [2.0, 2.0]) YIELD * RETURN *;

+--------------------------+--------------------------+--------------------------+
| distance | node | similarity |
+--------------------------+--------------------------+--------------------------+
| -1.19209e-07 | (:Node {vector: [2, 2]}) | 1 |
+--------------------------+--------------------------+--------------------------+

CREATE (n:Node {vector: [1, 2]});
CREATE (n:Node {vector: [1, 1]});
CREATE (n:Node {vector: [0, 1]});
CREATE (n:Node {vector: [0, 0]});

CALL vector_search.show_index_info() YIELD * RETURN *;

+----------+-----------+-------------+---------+----------+------+-------------+-------------------------+
| capacity | dimension | index_name | label | property | size | scalar_kind | index_type |
+----------+-----------+-------------+---------+----------+------+-------------+-------------------------+
| 2048 | 2 | "index_name"| ":Node" | "vector" | 5 | "f16" | "label+property_vector" |
+----------+-----------+-------------+---------+----------+------+-------------+-------------------------+

CALL vector_search.search("index_name", 5, [2.0, 2.0]) YIELD * RETURN *;

+--------------------------+--------------------------+--------------------------+
| distance | node | similarity |
+--------------------------+--------------------------+--------------------------+
| -1.19209e-07 | (:Node {vector: [1, 1]}) | 1 |
| -1.19209e-07 | (:Node {vector: [2, 2]}) | 1 |
| 0.0513167 | (:Node {vector: [1, 2]}) | 0.948683 |
| 0.292893 | (:Node {vector: [0, 1]}) | 0.707107 |
| 1 | (:Node {vector: [0, 0]}) | 0 |
+--------------------------+--------------------------+--------------------------+
