Hangfire.Community.Dashboard.JobsInsights 1.0.1

Hangfire.Community.Dashboard.JobsInsights

👁 License
👁 NuGet

​JobsInsights adds a powerful operational observability page to the Hangfire Dashboard.
Monitor the health and performance of your background jobs at a glance, with a live summary grouped by job type, detailed historical views, interactive charts, and built‑in data management.

✨ Features

• Job Type Summary
  See every job type with its last 15 execution results (green = success, red = failure) and average duration.
  Quickly filter by state or job type name.

• Full History
  Drill down into any job type to view all tracked executions with client‑side pagination, search, and sortable columns.

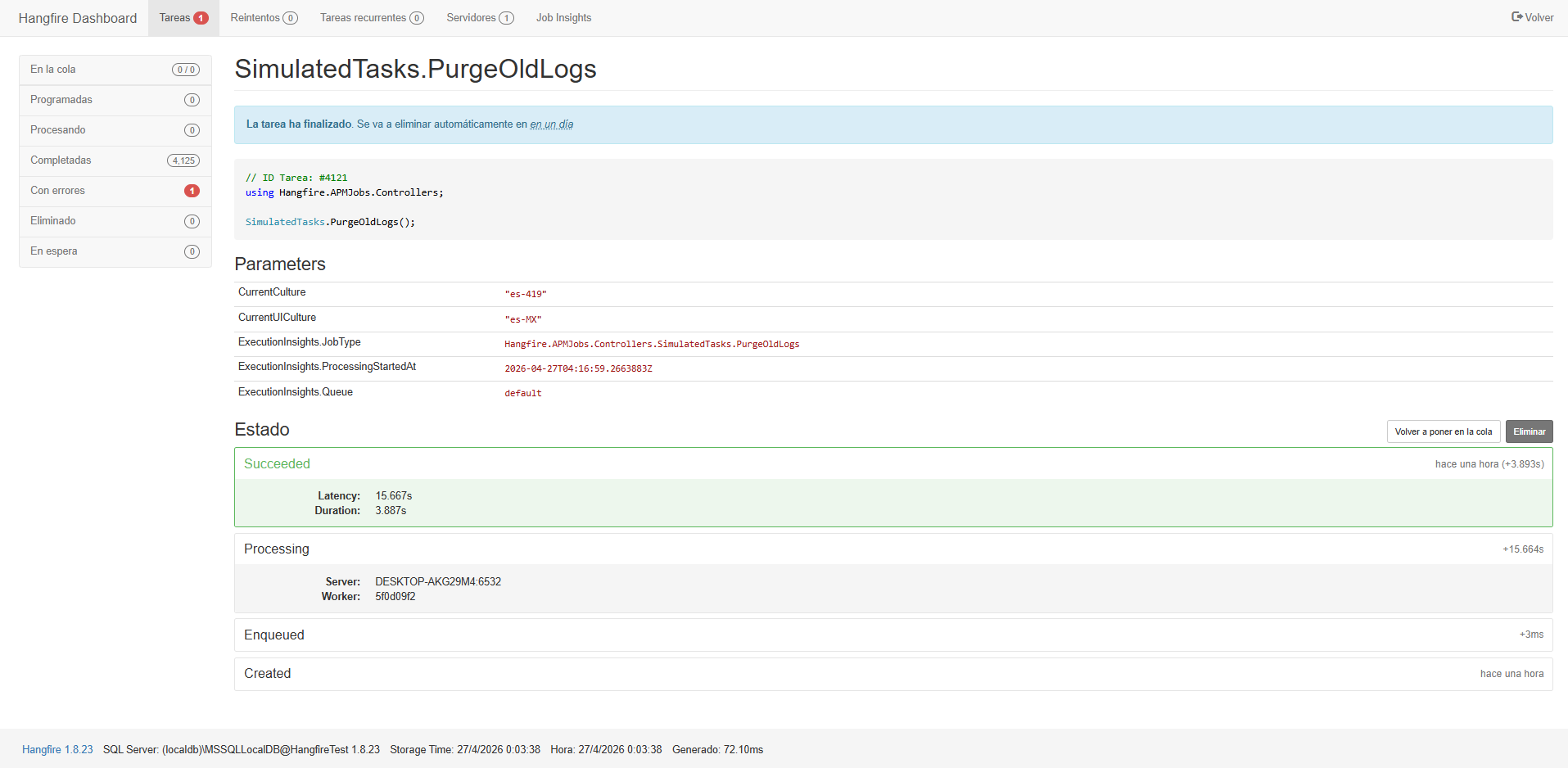

  Errors are expandable, and each job links directly to its Hangfire details page.

• Interactive Charts (per job type detail)

  • Duration Trends – Explore avg duration over time (last 100 exec, 1h, 7d, 15d, 30d, 45d).

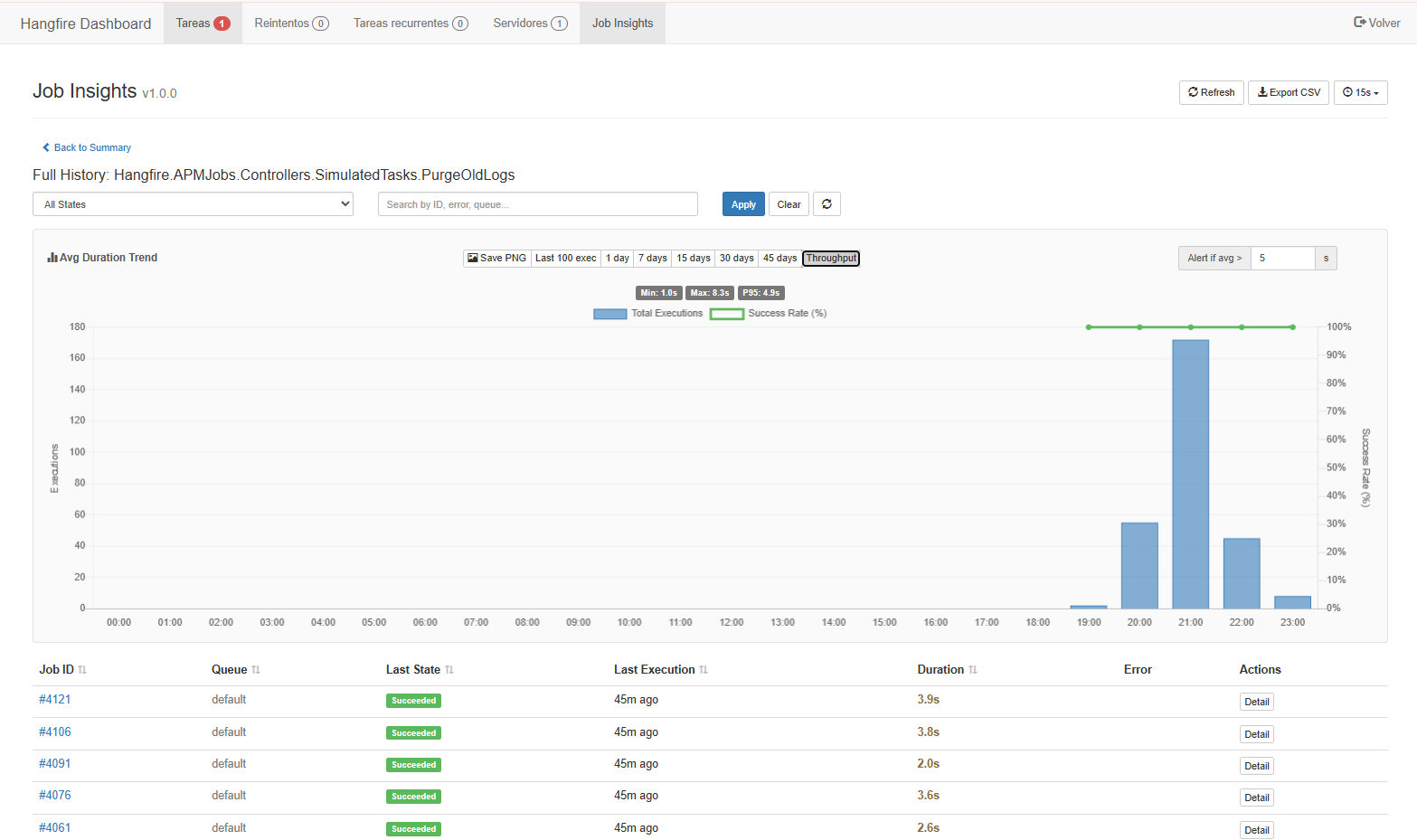

  • Throughput – View total executions and success rate per hour for the last 24h.
  • Configurable alert threshold – the chart turns red and a warning banner appears when the average duration exceeds your limit.
  • Built‑in stats: min, max, P95, and a dashed average line on the chart.
  • Export the chart as PNG image.

• Data Management
  Set a retention period and delete older execution data directly from the dashboard.

• Native Integration
  Uses only Hangfire’s own storage – no external databases, no additional infrastructure.
  Blends seamlessly into the existing dashboard design with Bootstrap 3 and native JavaScript.

📸 Screenshots

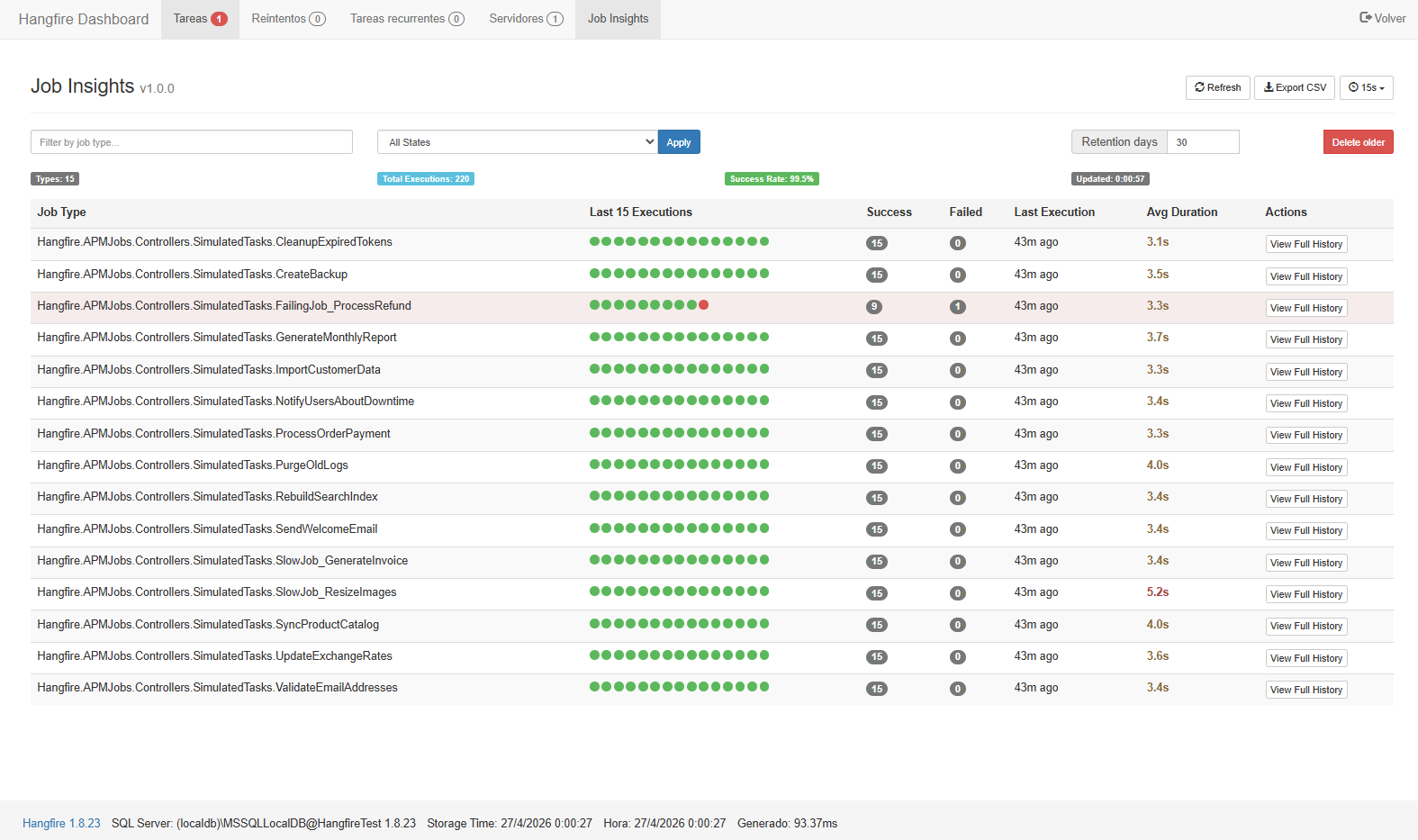

👁 Summary view

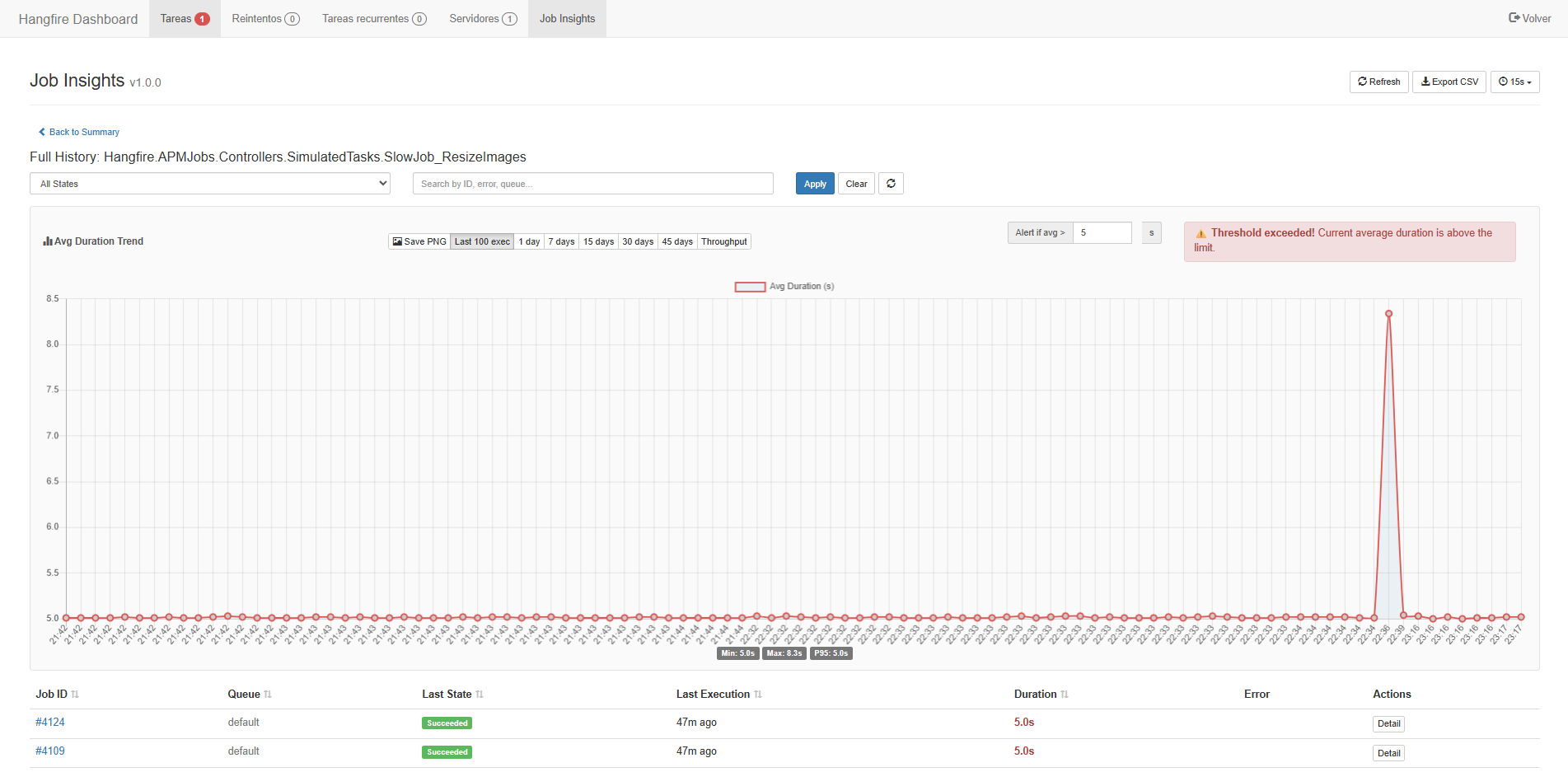

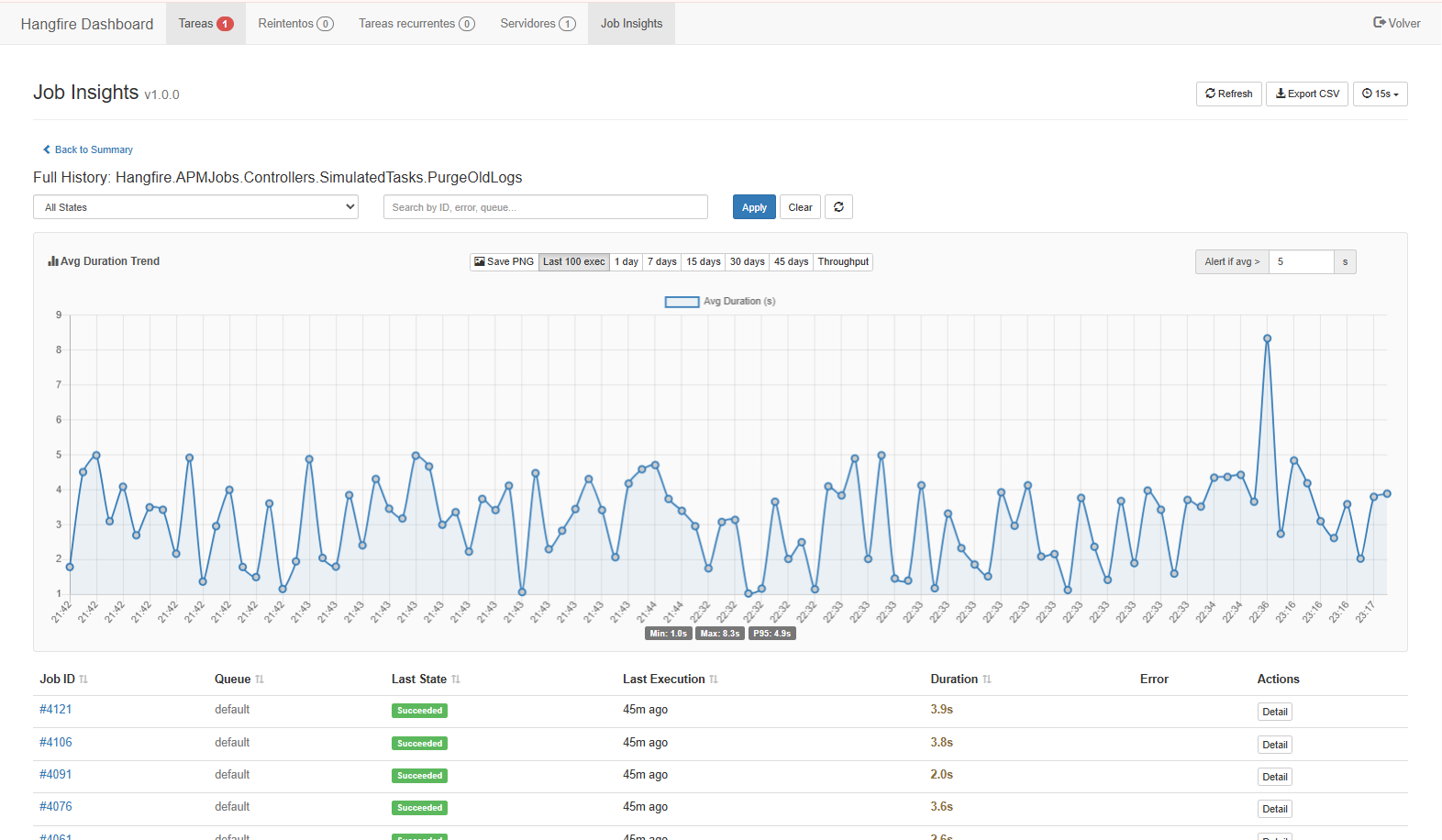

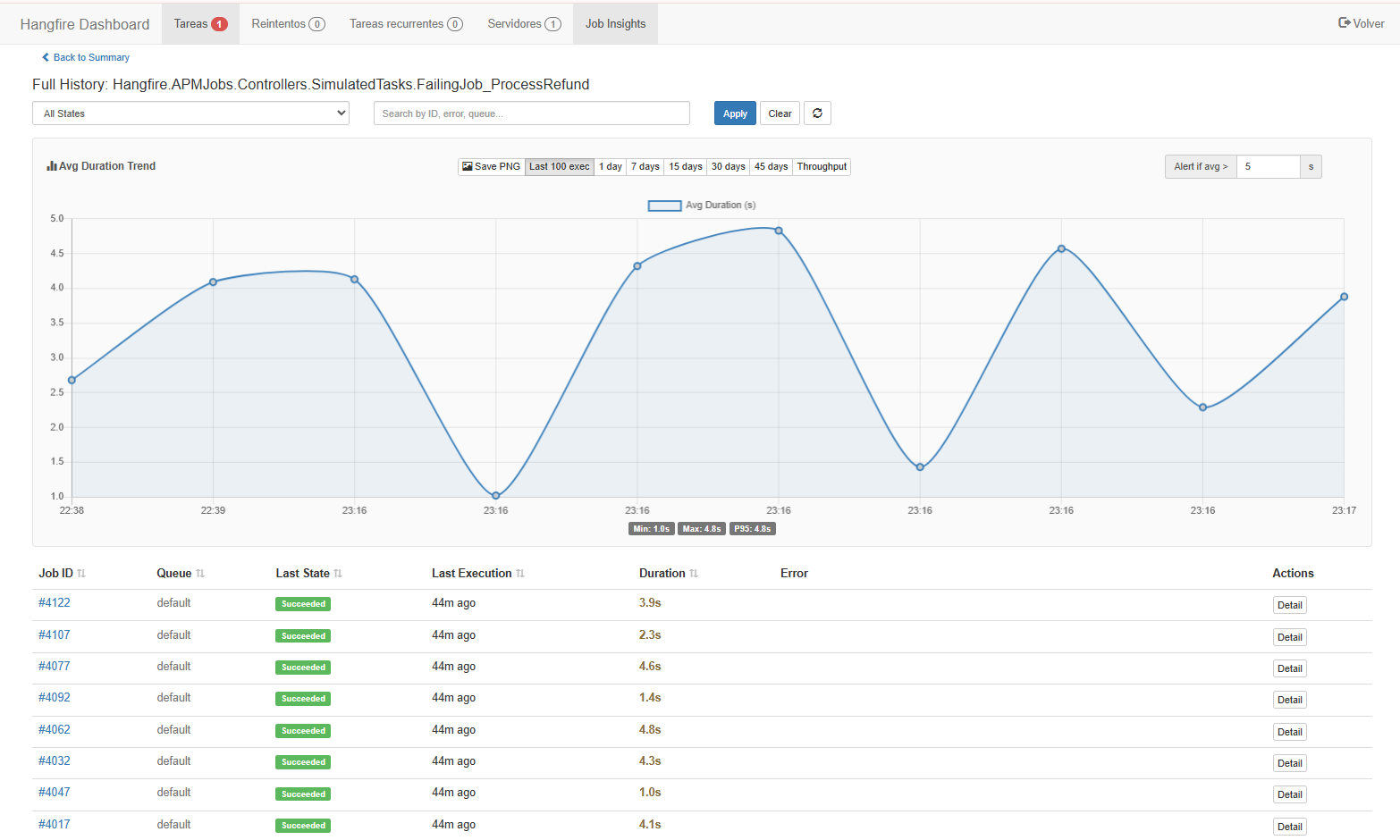

👁 Detail view with chart
👁 Detail view with chart
👁 Detail view with chart
👁 Detail view with chart
👁 Detail view with chart

Setup for ASP.NET Core

using Hangfire;
using Hangfire.Community.Dashboard.JobsInsights;

namespace Application
{
 public class Startup
 {
 public void ConfigureServices(IServiceCollection services)
 {
 services.AddHangfire(configuration =>
 {
 configuration
 .UseMemoryStorage() // or your storage
 .UseJobsInsights(); // Add the Jobs Insights page
 });

 services.AddHangfireServer();
 }
 }
}

Setup for ASP.NET (.NET Framework)

using Hangfire;
using Hangfire.Community.Dashboard.JobsInsights;

namespace Application
{
 public class Startup
 {
 public void Configuration(IAppBuilder app)
 {
 GlobalConfiguration.Configuration
 .UseJobsInsights(); // Add the Jobs Insights page

 app.UseHangfireDashboard();
 }
 }
}

Requirements

Hangfire 1.7.0 or later

.NET Standard 2.0 / .NET Framework 4.6.1 / .NET Core 2.0 or later

Contributing Contributions are welcome! Please open an issue or pull request for new features, bug fixes, or suggestions.

🙏 Acknowledgments

This project was heavily inspired by the architectural patterns and dashboard extension techniques demonstrated in Hangfire.Community.Dashboard.Heatmap by brodrigz.

The Heatmap plugin served as a reference for integrating Razor-based pages, custom API dispatchers, and navigation menus within the Hangfire Dashboard ecosystem. Many of the foundational approaches used in JobsInsights — such as IDashboardDispatcher, embedded Razor views, and native storage usage — were adapted from that excellent work. Thank you for sharing it with the community!
