Intel Celeron D
Revised (5/08/05)

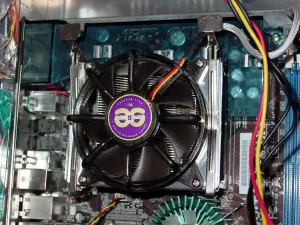

The Intel Celeron D (Socket 478) results have been updated. We paired the Celeron
D up with a Speeze CopperSnake III (EE475B13), to help alleviate some of the
heat troubles we faced when the processor was initially tested. In addition,
we've changed around some of the hardware and software configurations, to reflect
the latest Linux advancements, as we had previously faced hardware incompatibilities
with this testbed when running Linux. The Intel Celeron D (Socket 478)
results have been updated. We paired the Celeron D up with a Speeze CopperSnake
III (EE475B13), to help alleviate some of the heat troubles we faced when the
processor was initially tested. In addition, we've changed around some of the
hardware and software configuration, to reflect the latest Linux advancements,
as we had previously faced hardware incompatibilities with this testbed when
running Linux. For comparison purposes, we also tested an Intel Pentium 4 2.4C
processor using the same Speeze heatsink. During the testing of the Pentium
4, we ran all of the benchmarks with the standard non-SMP Linux kernel (2.6.11-1.14)
and the 2.6.11-1.14 SMP (Symmetric Multi-Processing) kernel, as the Pentium
4 C processors feature Hyper-Threading technology. The testbed used in this
review, was comprised of the following components:
| Hardware Components | |
| Motherboard: | Abit IC7-MAX3 |
| Memory: | 512MB Corsair XMS PC4400 CAS2.5 |
| Graphics Card: | ECS ATI 9200 128MB |
| Hard Drives: | Western Digital 40GB 7200RPM |
| Optical Drives: | Lite-On 16x DVD-ROM |
| Add-On Devices: | D-Link DFE-530TX+ |
| Cooling: | 5 x 80mm case fans & Speeze CopperSnake III |
| Case: | Chieftec Server Chassis |
| Power Supply: | Silentmaxx 580W IC-Tech |
| Software Components | |
| Operating System: | FedoraCore3 |
| Linux Kernel: | 2.6.11-1.14 |
| GCC (GNU Compiler): | 3.4.2 |
| Xorg 6.8.2 | |
To see how well a Celeron D could fair against a Intel Pentium 4 2.4C, we ran Blue Sail Vector Scalar Product, Blue Sail Sparse-Vector Scalar Product, Blue Sail Singular Value Decomposition, and glxgears. In addition, we measured the time it took to compile LAME (3.96.1), LAME encoding, tar archiving/extraction of an ISO file, and Apache Benchmark.
