You’ve built a .NET API that handles file uploads. Users select a file, your API receives the binary stream, then uploads it to S3. It works - until it doesn’t. Large files timeout, your server becomes a bottleneck, and bandwidth costs skyrocket because every byte passes through your infrastructure.

There’s a better way: presigned URLs. Instead of proxying files through your server, you generate a secure, time-limited URL that lets users upload directly to S3. Your server never touches the file. The same approach works for downloads - grant temporary access to private objects without making your bucket public. If you are dealing with files large enough to need chunked transfers, multipart uploads with AWS S3 pair naturally with this pattern.

In this article, we’ll build a complete .NET API that generates presigned URLs for both uploads and downloads, implement direct browser uploads, and cover security best practices you need to know.

The Newsletter Tue 7 PM IST

Weekly .NET Newsletter

Trusted by 8,429 .NET developers

Every Tuesday, I send the one .NET insight I wish I'd had earlier that week. Production patterns, Claude Code workflows, and benchmarks - never published on the blog.

This week's take - my verdict on the hottest .NET topic.

3-5 quick wins you can use the same day.

Bonus drop - Claude Code prompts that ship real features.

Free · 52 issues a year Join the newsletter →

The complete source code for this article is available on GitHub.

What Are Presigned URLs?

A presigned URL is a URL that grants temporary access to a private S3 object. The URL contains authentication information embedded as query parameters - specifically, a signature generated using your AWS credentials. Anyone with the URL can perform the specified operation (GET, PUT, or DELETE) until the URL expires.

Key characteristics:

Time-limited: You specify an expiration time (up to 7 days for IAM users)
Operation-specific: A URL for uploading cannot be used for downloading
Credential-bound: The URL inherits permissions from whoever generated it
Reusable: The same URL can be used multiple times until it expires

Why Use Presigned URLs?

Traditional Upload	Presigned URL Upload
Client → Your Server → S3	Client → S3 directly
Server bandwidth consumed	Zero server bandwidth
Server memory for file buffering	No buffering needed
Timeout issues with large files	Handles any file size
Complex multipart handling	S3 handles everything

For downloads, presigned URLs let you share private objects temporarily without:

Making your bucket public
Creating IAM users for each consumer
Building a proxy endpoint

Read next · Companion article

Working with AWS S3 using ASP.NET Core

New to S3? Start with my comprehensive guide covering bucket operations, file uploads, and downloads.

Prerequisites

Before we start, ensure you have:

AWS Account with S3 access
.NET 10 SDK
Visual Studio 2026 or VS Code
AWS CLI configured with credentials (setup guide here)
An existing S3 bucket (or we’ll create one)

Project Setup

I’ll build everything on minimal API endpoints in ASP.NET Core, which keep the presigned-URL routes compact and easy to follow. Create a new ASP.NET Core Web API:

Terminal window

dotnetnewwebapi-nPresignedUrlDemo
cdPresignedUrlDemo

Install the required NuGet packages:

Terminal window

dotnetaddpackageAWSSDK.S3
dotnetaddpackageAWSSDK.Extensions.NETCore.Setup
dotnetaddpackageScalar.AspNetCore

Configure your appsettings.json with your AWS profile:

{
"Logging": {
"LogLevel": {
"Default": "Information",
"Microsoft.AspNetCore": "Warning"
}
},
"AllowedHosts": "*",
"AWS": {
"Profile": "default",
"Region": "us-east-1"
}
}

Generating Presigned URLs for Downloads

Let’s start with the simpler case: generating URLs that allow users to download private objects.

Note: For this section, I’m assuming you already have files uploaded to your S3 bucket. If you need help uploading files first, check out my Working with AWS S3 using ASP.NET Core article which covers file uploads in detail.

Basic Download URL Generation

Create a Program.cs with the S3 service registered:

usingAmazon.S3;
usingAmazon.S3.Model;
usingScalar.AspNetCore;
varbuilder=WebApplication.CreateBuilder(args);
// Register AWS S3 service
builder.Services.AddDefaultAWSOptions(builder.Configuration.GetAWSOptions());
builder.Services.AddAWSService<IAmazonS3>();
builder.Services.AddOpenApi();
varapp=builder.Build();
app.MapOpenApi();
app.MapScalarApiReference();
// Generate presigned URL for downloading a file
app.MapGet("/download-url", (stringbucket, stringkey, intexpiresInMinutes, IAmazonS3s3) =>
{
varrequest=newGetPreSignedUrlRequest
{
BucketName=bucket,
Key=key,
Verb=HttpVerb.GET,
Expires=DateTime.UtcNow.AddMinutes(expiresInMinutes)
};
varurl=s3.GetPreSignedURL(request);
returnResults.Ok(new
{
Url=url,
ExpiresAt=request.Expires,
Bucket=bucket,
Key=key
});
})
.WithName("GetDownloadUrl")
.WithTags("Downloads");
app.Run();

The GetPreSignedUrlRequest takes:

BucketName: The S3 bucket containing the object
Key: The object key (file path within the bucket)
Verb: The HTTP method (GET for downloads)
Expires: When the URL should stop working

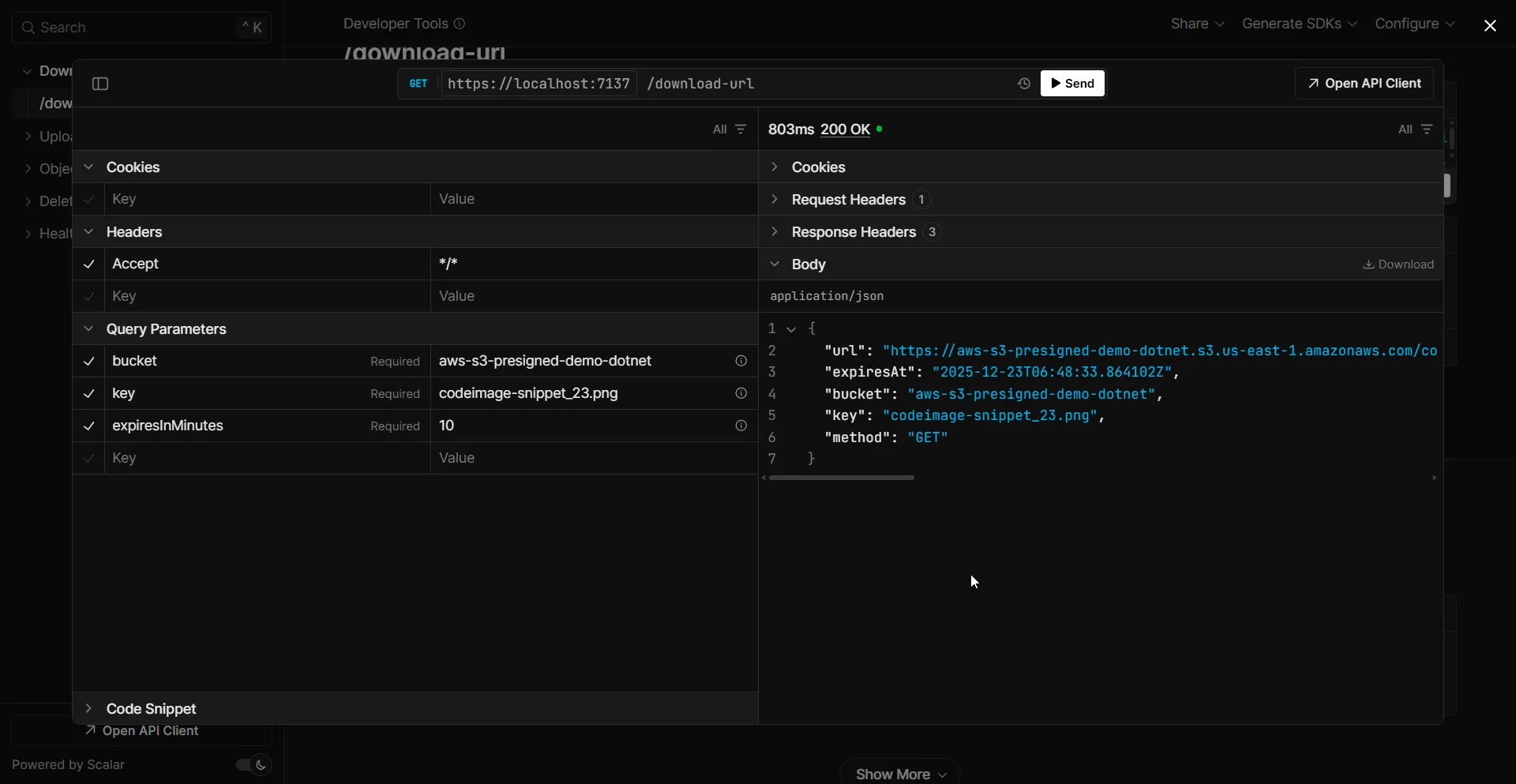

👁 Generating a presigned download URL

Testing the Download URL

Run the application and call the endpoint:

GET /download-url?bucket=aws-s3-presigned-demo-dotnet&key=codeimage-snippet_23.png&expiresInMinutes=10

The response contains a URL like:

https://my-bucket.s3.us-east-1.amazonaws.com/documents/report.pdf?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=...&X-Amz-Expires=3600&X-Amz-Signature=...

Paste this URL in a browser - the file downloads immediately. After 60 minutes, the same URL returns an AccessDenied error.

Generating Presigned URLs for Uploads

Upload URLs are more powerful - they let clients upload files directly to S3 without your server handling the bytes.

How Upload Flow Works

Here’s the typical flow for presigned URL uploads:

Client requests upload URL: Your frontend calls your API asking for permission to upload a file
API generates presigned URL: Your backend creates a time-limited URL with PUT permissions
Client uploads directly to S3: The frontend sends the file directly to S3 using the presigned URL
S3 stores the file: The file lands in your bucket without ever touching your server

Your server never receives the file bytes - it only generates the permission slip (the presigned URL).

Basic Upload URL Generation

// Generate presigned URL for uploading a file
app.MapGet("/upload-url", (stringbucket, stringkey, intexpiresInMinutes, IAmazonS3s3) =>
{
varrequest=newGetPreSignedUrlRequest
{
BucketName=bucket,
Key=key,
Verb=HttpVerb.PUT,
Expires=DateTime.UtcNow.AddMinutes(expiresInMinutes)
};
varurl=s3.GetPreSignedURL(request);
returnResults.Ok(new
{
Url=url,
ExpiresAt=request.Expires,
Bucket=bucket,
Key=key,
Method="PUT"
});
})
.WithName("GetUploadUrl")
.WithTags("Uploads");

The only difference from download URLs is Verb = HttpVerb.PUT.

Testing Upload with cURL

Once you have the presigned URL, you can test it directly from the command line:

Terminal window

# Get the presigned URL from your API
curl"http://localhost:5268/upload-url?bucket=my-bucket&key=test.txt&expiresInMinutes=15"
# Use the returned URL to upload a file
curl-XPUT-T"./myfile.txt""https://my-bucket.s3.amazonaws.com/test.txt?X-Amz-Algorithm=..."

Or test with PowerShell:

Terminal window

# Upload a file using the presigned URL
Invoke-RestMethod-Method PUT -Uri $presignedUrl-InFile ".\myfile.txt"

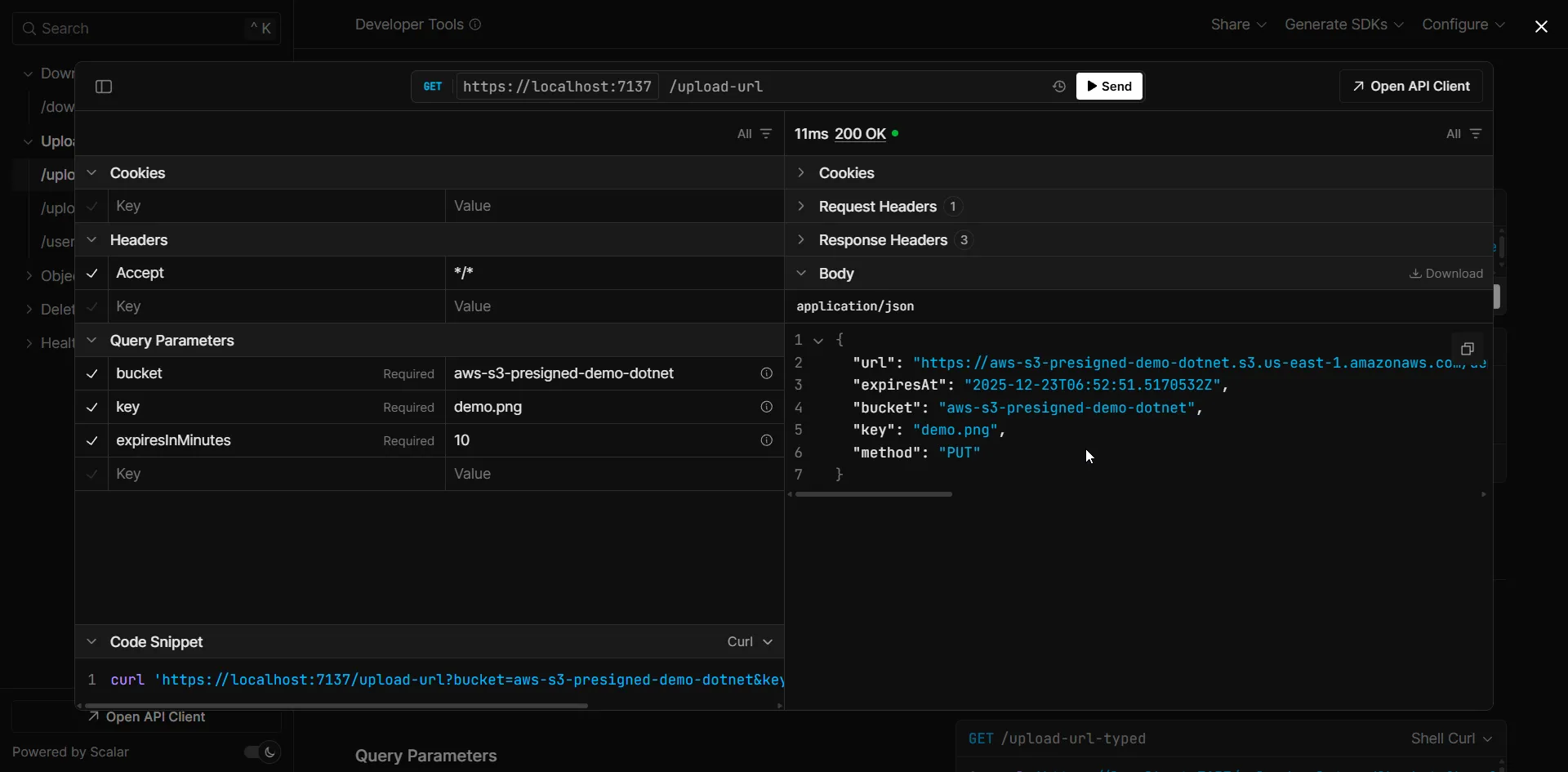

👁 Generating a presigned upload URL

Upload URL with Content Type

For better control, specify the expected content type:

app.MapGet("/upload-url-typed", (stringbucket, stringkey, stringcontentType, intexpiresInMinutes, IAmazonS3s3) =>
{
varrequest=newGetPreSignedUrlRequest
{
BucketName=bucket,
Key=key,
Verb=HttpVerb.PUT,
Expires=DateTime.UtcNow.AddMinutes(expiresInMinutes),
ContentType=contentType
};
varurl=s3.GetPreSignedURL(request);
returnResults.Ok(new
{
Url=url,
ExpiresAt=request.Expires,
ContentType=contentType,
Method="PUT"
});
})
.WithName("GetUploadUrlWithContentType")
.WithTags("Uploads");

When ContentType is specified, the upload request must include a matching Content-Type header, or S3 rejects it. This prevents clients from uploading unexpected file types.

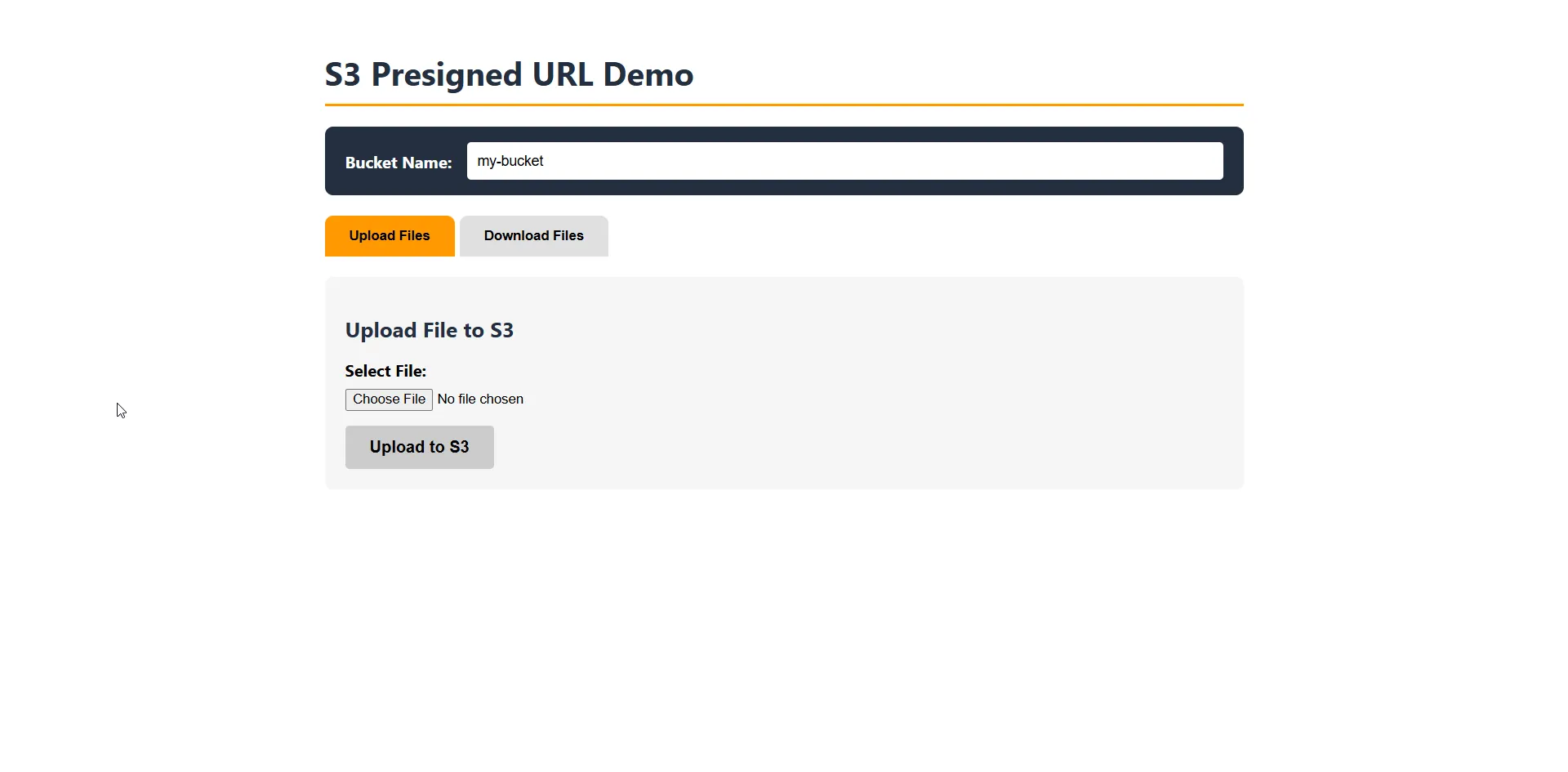

Building a Blazor WebAssembly Client

Let’s build a complete Blazor WASM app that demonstrates both uploading and downloading files directly to/from S3 using presigned URLs. This showcases the full client-side flow without any file bytes passing through your API server.

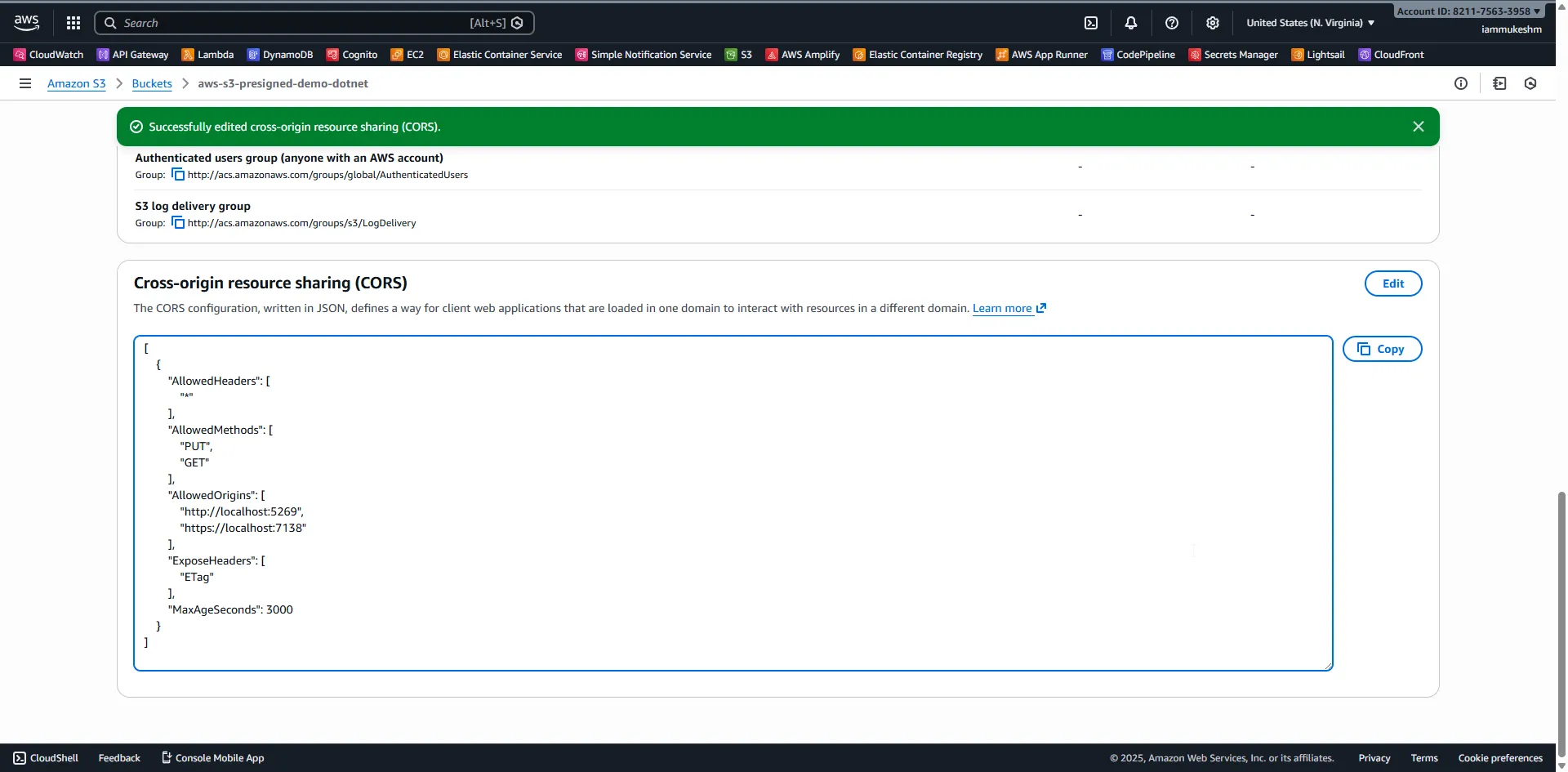

Important: Before the Blazor app can communicate directly with S3, you must configure CORS on your S3 bucket. See the Handling CORS for Browser Uploads section below - without this, all direct S3 requests will fail.

Setting Up the Blazor Project

Create a Blazor WebAssembly project:

Terminal window

dotnetnewblazorwasm-nPresignedUrlDemo.Blazor

The key is using HttpClient to first get the presigned URL from our API, then upload or download directly to/from S3.

The Complete Blazor Component

Here’s the full Home.razor component with upload, download, and delete functionality:

@page"/"
@injectHttpClientHttp
<h1>S3 Presigned URL Demo</h1>
<divclass="bucket-config">
<label>Bucket Name:</label>
<inputtype="text"@bind="bucketName"placeholder="my-bucket" />
</div>
<divclass="tabs">
<buttonclass="tab @(activeTab=="upload"?"active":"")"
@onclick="@(() =>activeTab="upload")">
Upload Files
</button>
<buttonclass="tab @(activeTab=="download"?"active":"")"
@onclick="@(() =>activeTab="download")">
Download Files
</button>
</div>
@if (activeTab=="upload")
{
<divclass="section">
<h2>Upload File to S3</h2>
<divclass="form-group">
<label>Select File:</label>
<InputFileOnChange="HandleFileSelection" />
</div>
@if (selectedFile!=null)
{
<divclass="file-info">
<p><strong>Selected:</strong> @selectedFile.Name</p>
<p><strong>Size:</strong> @FormatFileSize(selectedFile.Size)</p>
</div>
}
<buttonclass="btn-primary"@onclick="UploadFile"
disabled="@(selectedFile==null||isUploading)">
@if (isUploading) { <span>Uploading...</span> }
else { <span>Upload to S3</span> }
</button>
</div>
}
@if (activeTab=="download")
{
<divclass="section">
<h2>Browse & Download Files</h2>
<divclass="form-group">
<label>Prefix (folder path):</label>
<inputtype="text"@bind="prefix"placeholder="uploads/" />
</div>
<buttonclass="btn-primary"@onclick="ListObjects"disabled="@isLoading">
@if (isLoading) { <span>Loading...</span> }
else { <span>List Files</span> }
</button>
</div>
@if (s3Objects.Count>0)
{
<divclass="section">
<h2>Files in Bucket</h2>
<tableclass="file-table">
<thead>
<tr>
<th>Key</th>
<th>Size</th>
<th>Last Modified</th>
<th>Actions</th>
</tr>
</thead>
<tbody>
@foreach (varobjins3Objects)
{
<tr>
<td>@obj.Key</td>
<td>@FormatFileSize(obj.Size)</td>
<td>@obj.LastModified.ToString("yyyy-MM-dd HH:mm")</td>
<td>
<button@onclick="()=> GetDownloadUrl(obj.Key)">Download</button>
<button@onclick="()=> GetDeleteUrl(obj.Key)">Delete</button>
</td>
</tr>
}
</tbody>
</table>
</div>
}
}
@if (!string.IsNullOrEmpty(statusMessage))
{
<divclass="status @statusClass">@statusMessage</div>
}
@if (!string.IsNullOrEmpty(generatedUrl))
{
<divclass="url-section">
<h3>@urlTitle (expires in @urlExpiry minutes)</h3>
<textareareadonly>@generatedUrl</textarea>
<divclass="url-actions">
@if (urlType=="download")
{
<ahref="@generatedUrl"target="_blank">Open / Download</a>
}
elseif (urlType=="delete")
{
<button@onclick="ExecuteDelete">Confirm Delete</button>
}
</div>
</div>
}
@code{
privatestringbucketName="my-bucket";
privatestringprefix="";
privatestringactiveTab="upload";
// Upload state
privateIBrowserFile? selectedFile;
privateboolisUploading=false;
// Download/List state
privateboolisLoading=false;
privateList<S3ObjectInfo> s3Objects=new();
// Status and URL display
privatestringstatusMessage="";
privatestringstatusClass="";
privatestringgeneratedUrl="";
privatestringurlTitle="";
privatestringurlType="";
privateinturlExpiry=10;
privatestring? pendingDeleteKey;
privatevoidHandleFileSelection(InputFileChangeEventArgse)
{
selectedFile=e.File;
statusMessage="";
}
privateasyncTaskUploadFile()
{
if (selectedFile==null) return;
isUploading=true;
statusMessage="Getting presigned URL...";
statusClass="info";
StateHasChanged();
try
{
// Step 1: Get presigned URL from our API
varkey=$"uploads/{Guid.NewGuid()}/{selectedFile.Name}";
varresponse=awaitHttp.GetFromJsonAsync<PresignedUrlResponse>(
$"/upload-url?bucket={bucketName}&key={key}&expiresInMinutes=15");
statusMessage="Uploading directly to S3...";
StateHasChanged();
// Step 2: Upload directly to S3 using the presigned URL
usingvarfileStream=selectedFile.OpenReadStream(maxAllowedSize: 50*1024*1024);
usingvarcontent=newStreamContent(fileStream);
content.Headers.ContentType=newSystem.Net.Http.Headers.MediaTypeHeaderValue(
selectedFile.ContentType??"application/octet-stream");
// Create a NEW HttpClient for S3 (separate from our API client)
usingvars3Client=newHttpClient();
varuploadResponse=awaits3Client.PutAsync(response!.Url, content);
if (uploadResponse.IsSuccessStatusCode)
{
statusMessage="File uploaded successfully!";
statusClass="success";
selectedFile=null;
}
else
{
statusMessage=$"Upload failed: {uploadResponse.StatusCode}";
statusClass="error";
}
}
catch (Exceptionex)
{
statusMessage=$"Error: {ex.Message}";
statusClass="error";
}
finally
{
isUploading=false;
}
}
privateasyncTaskListObjects()
{
isLoading=true;
statusMessage="";
StateHasChanged();
try
{
varurl=$"/list-objects?bucket={bucketName}";
if (!string.IsNullOrWhiteSpace(prefix))
url+=$"&prefix={Uri.EscapeDataString(prefix)}";
s3Objects=awaitHttp.GetFromJsonAsync<List<S3ObjectInfo>>(url) ??new();
}
catch (Exceptionex)
{
statusMessage=$"Error: {ex.Message}";
statusClass="error";
}
finally
{
isLoading=false;
}
}
privateasyncTaskGetDownloadUrl(stringkey)
{
varresponse=awaitHttp.GetFromJsonAsync<PresignedUrlResponse>(
$"/download-url?bucket={bucketName}&key={key}&expiresInMinutes=10");
if (response!=null)
{
generatedUrl=response.Url;
urlTitle=$"Download URL for {key}";
urlType="download";
urlExpiry=10;
}
}
privateasyncTaskGetDeleteUrl(stringkey)
{
varresponse=awaitHttp.GetFromJsonAsync<PresignedUrlResponse>(
$"/delete-url?bucket={bucketName}&key={key}&expiresInMinutes=5");
if (response!=null)
{
generatedUrl=response.Url;
urlTitle=$"Delete URL for {key}";
urlType="delete";
urlExpiry=5;
pendingDeleteKey=key;
}
}
privateasyncTaskExecuteDelete()
{
usingvarclient=newHttpClient();
varresponse=awaitclient.DeleteAsync(generatedUrl);
if (response.IsSuccessStatusCode)
{
statusMessage="File deleted successfully!";
statusClass="success";
s3Objects.RemoveAll(o=>o.Key==pendingDeleteKey);
generatedUrl="";
}
}
privatestringFormatFileSize(longbytes)
{
string[] sizes= { "B", "KB", "MB", "GB" };
intorder=0;
doublesize=bytes;
while (size>=1024&&order<sizes.Length-1) { order++; size/=1024; }
return$"{size:0.##}{sizes[order]}";
}
privateclassPresignedUrlResponse
{
publicstringUrl { get; set; } ="";
publicDateTimeExpiresAt { get; set; }
}
privateclassS3ObjectInfo
{
publicstringKey { get; set; } ="";
publiclongSize { get; set; }
publicDateTimeLastModified { get; set; }
}
}

How It Works

Upload Flow:

User selects a file using Blazor’s InputFile component
Blazor calls your API to get a presigned PUT URL
Blazor uploads directly to S3 using HttpClient.PutAsync() with the presigned URL
S3 stores the file - your API server never sees the file bytes

Download Flow:

User clicks “List Files” to browse the bucket
API returns the list of objects (this call goes through your server)
User clicks “Download” on a file
Blazor gets a presigned GET URL from your API
Browser opens the URL directly, downloading from S3

Delete Flow:

User clicks “Delete” on a file
Blazor gets a presigned DELETE URL from your API
User confirms, and Blazor sends a DELETE request directly to S3

The critical part is creating a separate HttpClient for S3 operations. Your injected Http client has a base address pointing to your backend API, but presigned URLs point directly to S3 - so you need a fresh HttpClient without a base address.

Configure Program.cs

varbuilder=WebAssemblyHostBuilder.CreateDefault(args);
builder.RootComponents.Add<App>("#app");
// Configure HttpClient for your API
builder.Services.AddScoped(sp=>newHttpClient
{
BaseAddress=newUri("http://localhost:5268") // Your API URL
});
awaitbuilder.Build().RunAsync();

Running the Demo

Start the API: cd PresignedUrlDemo.Api && dotnet run
Start the Blazor app: cd PresignedUrlDemo.Blazor && dotnet run
Open http://localhost:5269 in your browser

👁 Blazor WebAssembly app - Upload tab

Select a file and click “Upload to S3”. The file goes directly from the browser to S3 - your API only generates the permission slip.

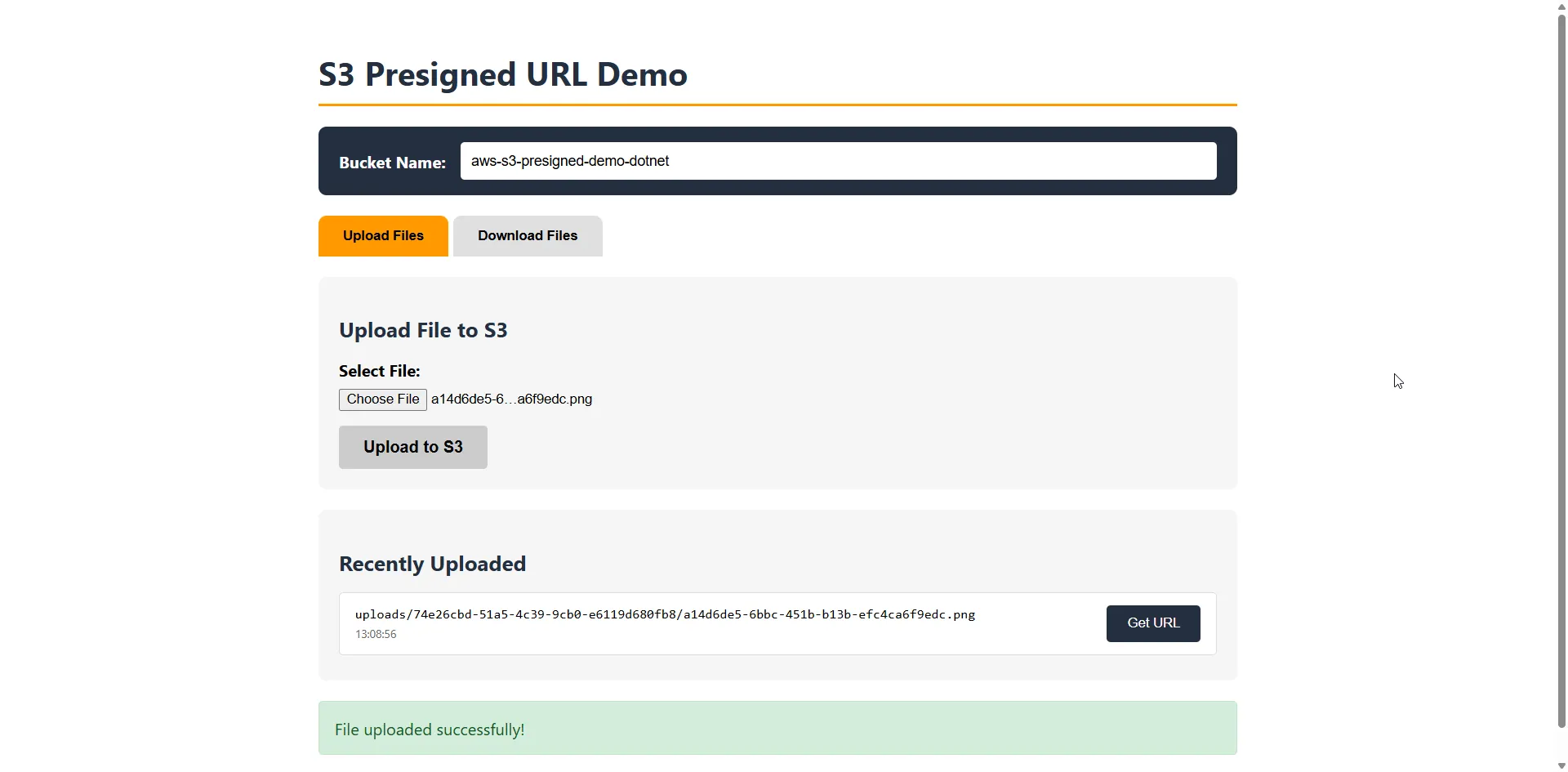

👁 Successful file upload to S3

Downloading Files with Blazor

The demo also includes a Download Files tab that lets you browse your S3 bucket contents and download files using presigned URLs. Switch to the Download tab, enter an optional prefix (folder path), and click “List Files” to see what’s in your bucket.

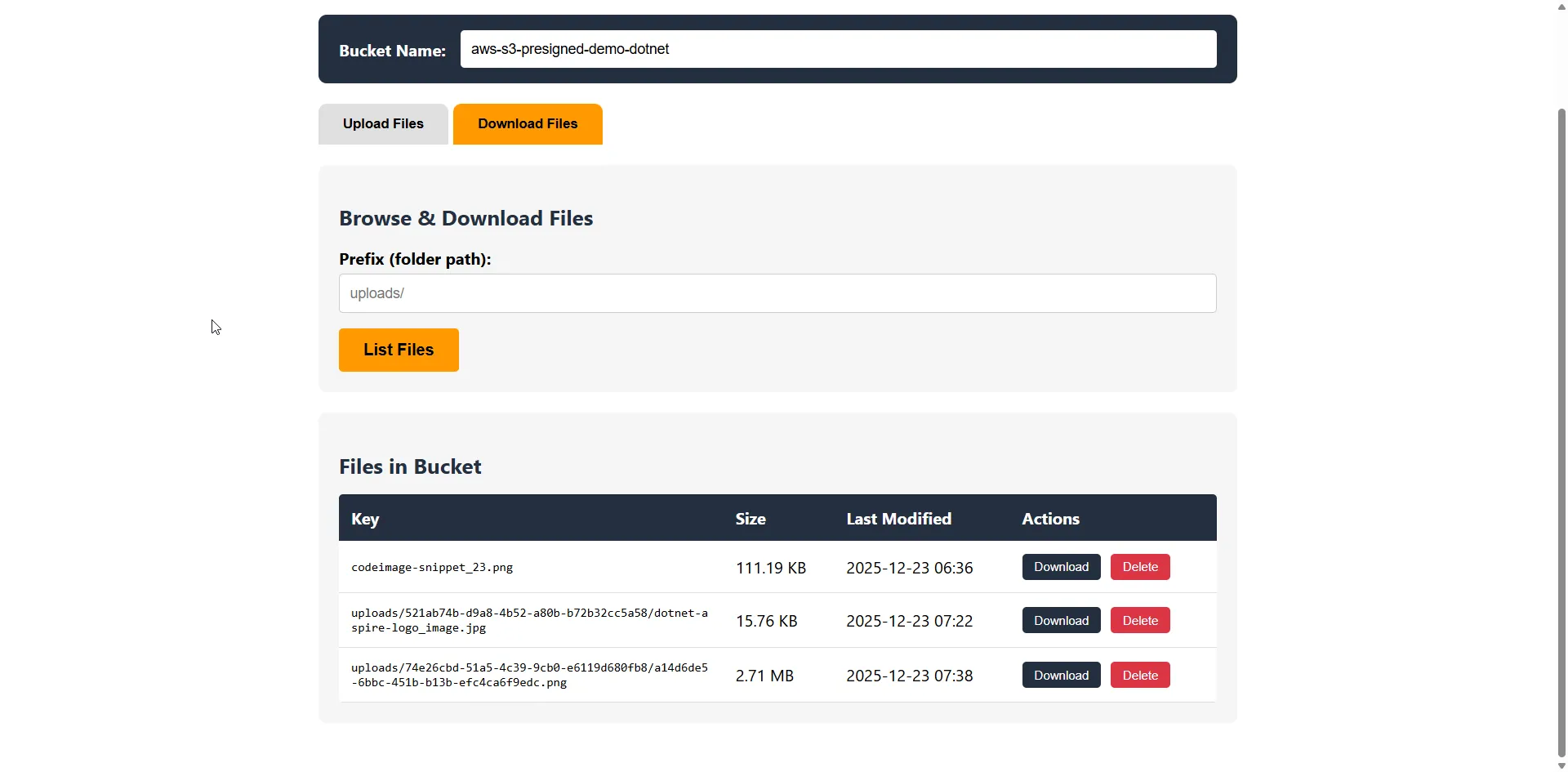

👁 Blazor WebAssembly app - Download/Browse tab

The download flow works similarly to uploads:

User clicks Download on a file in the list
Blazor calls your API to get a presigned GET URL for that object
Browser opens the URL directly, downloading the file from S3

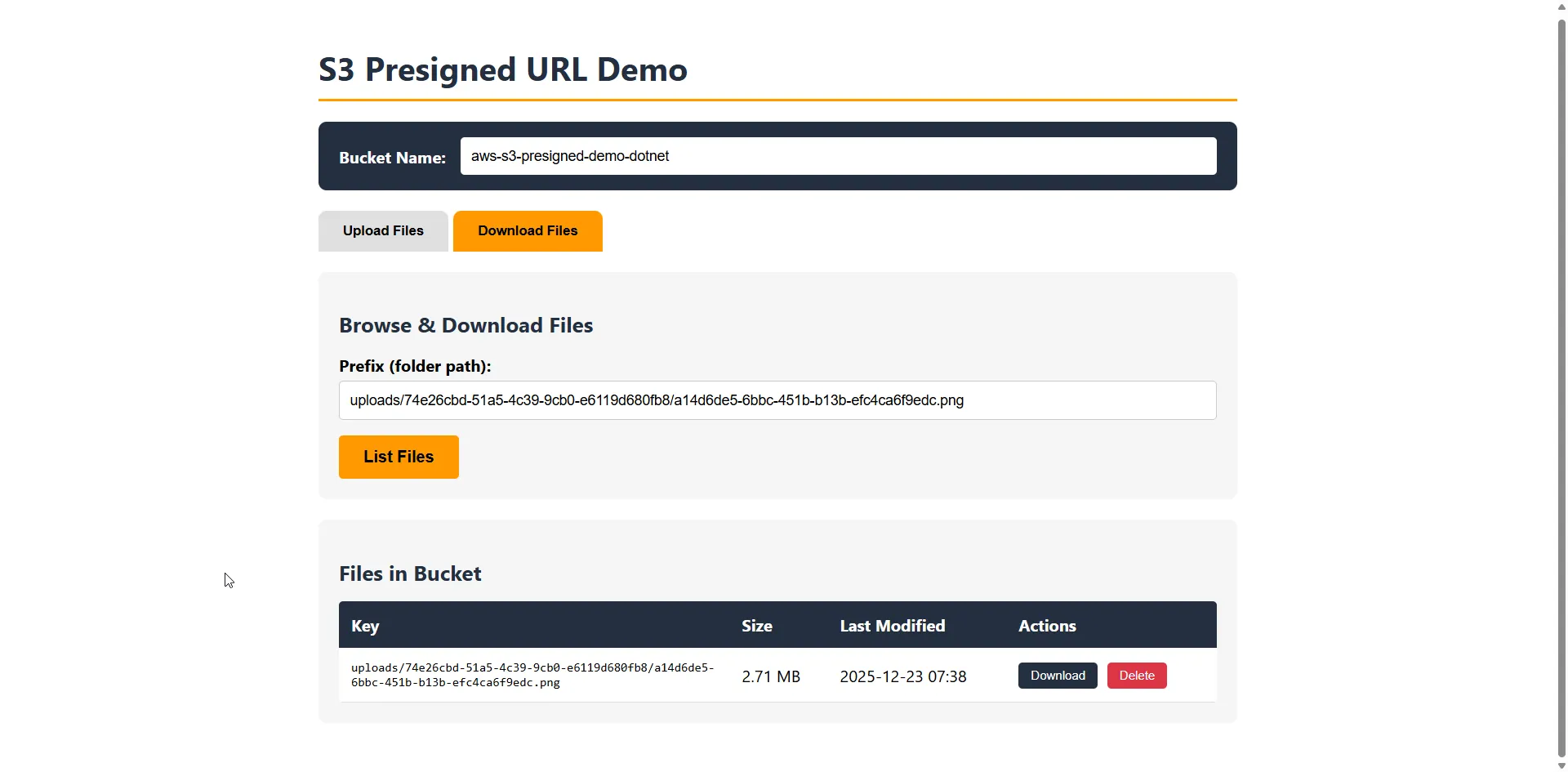

👁 Generated presigned download URL ready to use

The app also supports deleting files using presigned DELETE URLs - click the Delete button, confirm, and the file is removed directly from S3.

Here’s the key code for fetching a download URL and triggering the download:

privateasyncTaskGetDownloadUrl(stringkey)
{
varresponse=awaitHttp.GetFromJsonAsync<PresignedUrlResponse>(
$"/download-url?bucket={bucketName}&key={key}&expiresInMinutes=10");
if (response!=null)
{
generatedUrl=response.Url;
// User can click "Open / Download" to fetch the file directly from S3
}
}

The presigned URL opens in a new tab, and the browser downloads the file directly from S3 - your server never touches the bytes.

Handling CORS for Browser Uploads

This step is critical for the Blazor app to work. When your Blazor WebAssembly app tries to upload or download files directly to/from S3, the browser sends a cross-origin request. Without proper CORS configuration on your S3 bucket, these requests will fail with an error like:

Access to fetch at 'https://your-bucket.s3.amazonaws.com/...' from origin 'https://localhost:7138'
has been blocked by CORS policy: No 'Access-Control-Allow-Origin' header is present

Add this CORS configuration to your S3 bucket:

[
{
"AllowedHeaders": ["*"],
"AllowedMethods": ["PUT", "GET", "DELETE"],
"AllowedOrigins": ["http://localhost:5269", "https://localhost:7138"],
"ExposeHeaders": ["ETag"],
"MaxAgeSeconds": 3000
}
]

Note: Include DELETE in AllowedMethods if you want the Blazor app to delete files using presigned URLs.

Configuring CORS via AWS Console

Navigate to your S3 bucket in the AWS Console
Go to the Permissions tab
Scroll down to Cross-origin resource sharing (CORS)
Click Edit and paste the JSON configuration above
Click Save changes

Configuring CORS via AWS CLI

Alternatively, configure CORS using the AWS CLI:

Terminal window

awss3apiput-bucket-cors--bucketmy-bucket--cors-configurationfile://cors.json

Security tip: Don’t use "AllowedOrigins": ["*"] in production. Specify your actual domain(s).

👁 Configuring CORS on your S3 bucket

Expiration Time Limits

Presigned URL expiration depends on how you created your AWS credentials:

Credential Type	Maximum Expiration
IAM User (permanent credentials)	7 days
AWS Console	12 hours
IAM Role / STS Temporary Credentials	Credential lifetime
EC2 Instance Profile	~6 hours
ECS Task Role	1-6 hours

Important: A presigned URL expires at whichever comes first - the configured expiration or when the credentials used to generate it expire.

// This works for IAM users
varrequest=newGetPreSignedUrlRequest
{
BucketName=bucket,
Key=key,
Verb=HttpVerb.GET,
Expires=DateTime.UtcNow.AddDays(7) // Maximum for IAM users
};
// But if you're running on Lambda/ECS with role credentials,
// the URL may expire sooner when the role session ends

Security Best Practices

1. Limit Expiration Time

Don’t generate URLs with longer expiration than necessary:

// For immediate downloads, use short expiration
Expires=DateTime.UtcNow.AddMinutes(5)
// For scheduled uploads, match the expected window
Expires=DateTime.UtcNow.AddHours(1)

2. Validate User Permissions Before Generating URLs

Just because you can generate a presigned URL doesn’t mean you should. In a real app, the endpoint that issues URLs should sit behind JWT authentication in ASP.NET Core so only authorized users can mint them:

app.MapGet("/secure-download-url", async (stringkey, HttpContextcontext, IAmazonS3s3) =>
{
// Validate user has access to this file
varuserId=context.User.FindFirst("sub")?.Value;
if (!awaitUserCanAccessFile(userId, key))
{
returnResults.Forbid();
}
varrequest=newGetPreSignedUrlRequest
{
BucketName="my-bucket",
Key=key,
Verb=HttpVerb.GET,
Expires=DateTime.UtcNow.AddMinutes(15)
};
returnResults.Ok(new { Url=s3.GetPreSignedURL(request) });
});

3. Restrict Maximum Signature Age with Bucket Policies

Add a bucket policy to reject URLs older than a threshold:

{
"Version": "2012-10-17",
"Statement": [
{
"Sid": "DenyOldSignatures",
"Effect": "Deny",
"Principal": "*",
"Action": "s3:*",
"Resource": "arn:aws:s3:::my-bucket/*",
"Condition": {
"NumericGreaterThan": {
"s3:signatureAge": "600000"
}
}
}
]
}

This rejects any presigned URL where the signature is older than 10 minutes (600,000 milliseconds), regardless of the Expires parameter.

4. Use Separate Prefixes for User Uploads

Don’t let users overwrite each other’s files:

app.MapGet("/user-upload-url", (stringfilename, HttpContextcontext, IAmazonS3s3) =>
{
varuserId=context.User.FindFirst("sub")?.Value;
varkey=$"user-uploads/{userId}/{Guid.NewGuid()}/{filename}";
varrequest=newGetPreSignedUrlRequest
{
BucketName="my-bucket",
Key=key,
Verb=HttpVerb.PUT,
Expires=DateTime.UtcNow.AddMinutes(15)
};
returnResults.Ok(new
{
Url=s3.GetPreSignedURL(request),
Key=key
});
});

Complete API Example

Here’s the complete Program.cs bringing everything together:

usingAmazon.S3;
usingAmazon.S3.Model;
usingScalar.AspNetCore;
varbuilder=WebApplication.CreateBuilder(args);
builder.Services.AddDefaultAWSOptions(builder.Configuration.GetAWSOptions());
builder.Services.AddAWSService<IAmazonS3>();
builder.Services.AddOpenApi();
varapp=builder.Build();
app.MapOpenApi();
app.MapScalarApiReference();
// Generate presigned URL for downloading
app.MapGet("/download-url", (stringbucket, stringkey, intexpiresInMinutes, IAmazonS3s3) =>
{
varrequest=newGetPreSignedUrlRequest
{
BucketName=bucket,
Key=key,
Verb=HttpVerb.GET,
Expires=DateTime.UtcNow.AddMinutes(expiresInMinutes)
};
returnResults.Ok(new
{
Url=s3.GetPreSignedURL(request),
ExpiresAt=request.Expires,
Method="GET"
});
})
.WithName("GetDownloadUrl")
.WithTags("Downloads");
// Generate presigned URL for uploading
app.MapGet("/upload-url", (stringbucket, stringkey, intexpiresInMinutes, IAmazonS3s3) =>
{
varrequest=newGetPreSignedUrlRequest
{
BucketName=bucket,
Key=key,
Verb=HttpVerb.PUT,
Expires=DateTime.UtcNow.AddMinutes(expiresInMinutes)
};
returnResults.Ok(new
{
Url=s3.GetPreSignedURL(request),
ExpiresAt=request.Expires,
Method="PUT"
});
})
.WithName("GetUploadUrl")
.WithTags("Uploads");
// Generate presigned URL with content type restriction
app.MapGet("/upload-url-typed", (stringbucket, stringkey, stringcontentType, intexpiresInMinutes, IAmazonS3s3) =>
{
varrequest=newGetPreSignedUrlRequest
{
BucketName=bucket,
Key=key,
Verb=HttpVerb.PUT,
Expires=DateTime.UtcNow.AddMinutes(expiresInMinutes),
ContentType=contentType
};
returnResults.Ok(new
{
Url=s3.GetPreSignedURL(request),
ExpiresAt=request.Expires,
ContentType=contentType,
Method="PUT"
});
})
.WithName("GetUploadUrlWithContentType")
.WithTags("Uploads");
// Health check
app.MapGet("/health", () =>Results.Ok(new { Status="Healthy", Timestamp=DateTime.UtcNow }))
.WithName("HealthCheck")
.WithTags("Health");
app.Run();

You can find the full source code with additional files on GitHub.

Troubleshooting Common Issues

SignatureDoesNotMatch

Cause: The request doesn’t match what was signed. Common triggers:

Different Content-Type header than specified
Clock drift between your server and AWS
URL was modified after generation

Solution:

Sync your server clock with NTP
Ensure headers match exactly
Don’t URL-encode the presigned URL again

AccessDenied (403)

Cause: Either the URL expired, or the credentials used to generate it lack permissions.

Solution:

Verify the IAM user/role has s3:GetObject or s3:PutObject permissions
Check bucket policies for explicit denies
Confirm the URL hasn’t expired

CORS Errors

Cause: Browser blocking cross-origin request to S3.

Solution:

Add CORS configuration to your bucket
Ensure AllowedOrigins includes your domain
Verify AllowedMethods includes the HTTP verb you’re using

Summary

Presigned URLs are a powerful pattern for handling file operations in .NET applications:

Zero bandwidth through your server for uploads and downloads
Secure by default - your bucket stays private
Time-limited access - URLs automatically expire
Scalable - S3 handles all the heavy lifting

Use them whenever you need to:

Allow file uploads without proxying through your API
Share private files temporarily
Reduce server load and bandwidth costs
Handle large file uploads without timeout issues

Read next · Companion article

S3 Object Lifecycle Policies with .NET

Automate storage cost management by transitioning and expiring the objects users upload.

Read next · Companion article

S3 Versioning in .NET

Protect uploaded files against accidental overwrites and deletes by keeping every version.

Read next · Companion article

Serverless Image Processing with S3, SQS and Lambda

Trigger downstream processing automatically once a file lands in your bucket.

The complete source code is available on GitHub. Clone it, try it out, and let me know in the comments how you’re using presigned URLs in your projects!

URL: https://codewithmukesh.com/blog/aws-s3-presigned-urls-dotnet/

⇱ AWS S3 Presigned URLs for .NET – Secure File Uploads & Downloads Without Exposing Your Bucket - codewithmukesh

AWS S3 Presigned URLs for .NET – Secure File Uploads & Downloads Without Exposing Your Bucket

Weekly .NET Newsletter

What Are Presigned URLs?

Why Use Presigned URLs?

Working with AWS S3 using ASP.NET Core

Prerequisites

Project Setup

Generating Presigned URLs for Downloads

Basic Download URL Generation

Testing the Download URL

Generating Presigned URLs for Uploads

How Upload Flow Works

Basic Upload URL Generation

Testing Upload with cURL

Upload URL with Content Type

Building a Blazor WebAssembly Client

Setting Up the Blazor Project

The Complete Blazor Component

How It Works

Configure Program.cs

Running the Demo

Downloading Files with Blazor

Handling CORS for Browser Uploads

Configuring CORS via AWS Console

Configuring CORS via AWS CLI

Expiration Time Limits

Security Best Practices

1. Limit Expiration Time

2. Validate User Permissions Before Generating URLs

3. Restrict Maximum Signature Age with Bucket Policies

4. Use Separate Prefixes for User Uploads

Complete API Example

Troubleshooting Common Issues

SignatureDoesNotMatch

AccessDenied (403)

CORS Errors

Summary

S3 Object Lifecycle Policies with .NET

S3 Versioning in .NET

Serverless Image Processing with S3, SQS and Lambda

Grab the source code.

Grab the source code.

More from the archive.

Working with AWS S3 using ASP.NET Core (.NET 10) - Upload, Download & Delete Files

S3 Versioning in .NET - Protect Against Accidental Deletes and Recover Any File Version

LocalStack for .NET Developers – Run AWS Services Locally for Free

AWS Systems Manager Parameter Store for .NET Developers – Free Configuration Management

Keep digging. 8 more from the archive.

S3 Object Lifecycle Policies with .NET - Automate Storage Management & Cost Optimization

AWS Message Processing Framework for .NET - Simplifying AWS Based Messaging Applications in .NET

Pagination in Amazon DynamoDB with .NET - Improve your API Performance!

Handling Concurrency in Amazon DynamoDB with Optimistic Locking - Detailed Guide

Automated AWS IAM Access Key Rotation with .NET, AWS Lambda, SNS, and EventBridge Scheduler

Schedule AWS Lambda With Amazon EventBridge Scheduler - Powerful Serverless Scheduling!

Integrating Generative AI in .NET with Amazon BedRock - Super Charge your API with AI

Secrets in ASP.NET Core with AWS Secrets Manager – Super Simple & Secure

What's your take?

stay ahead in .NET

Cookies, but only the useful ones.
