Warping is one of the most frustrating issues in 3D printing. It causes prints to peel up from the build plate or distort as layers cool. This problem is pervasive with materials like ABS but can happen with almost any filament under the right conditions. Understanding why warping occurs and how to prevent it will help you get clean, accurate prints every time.

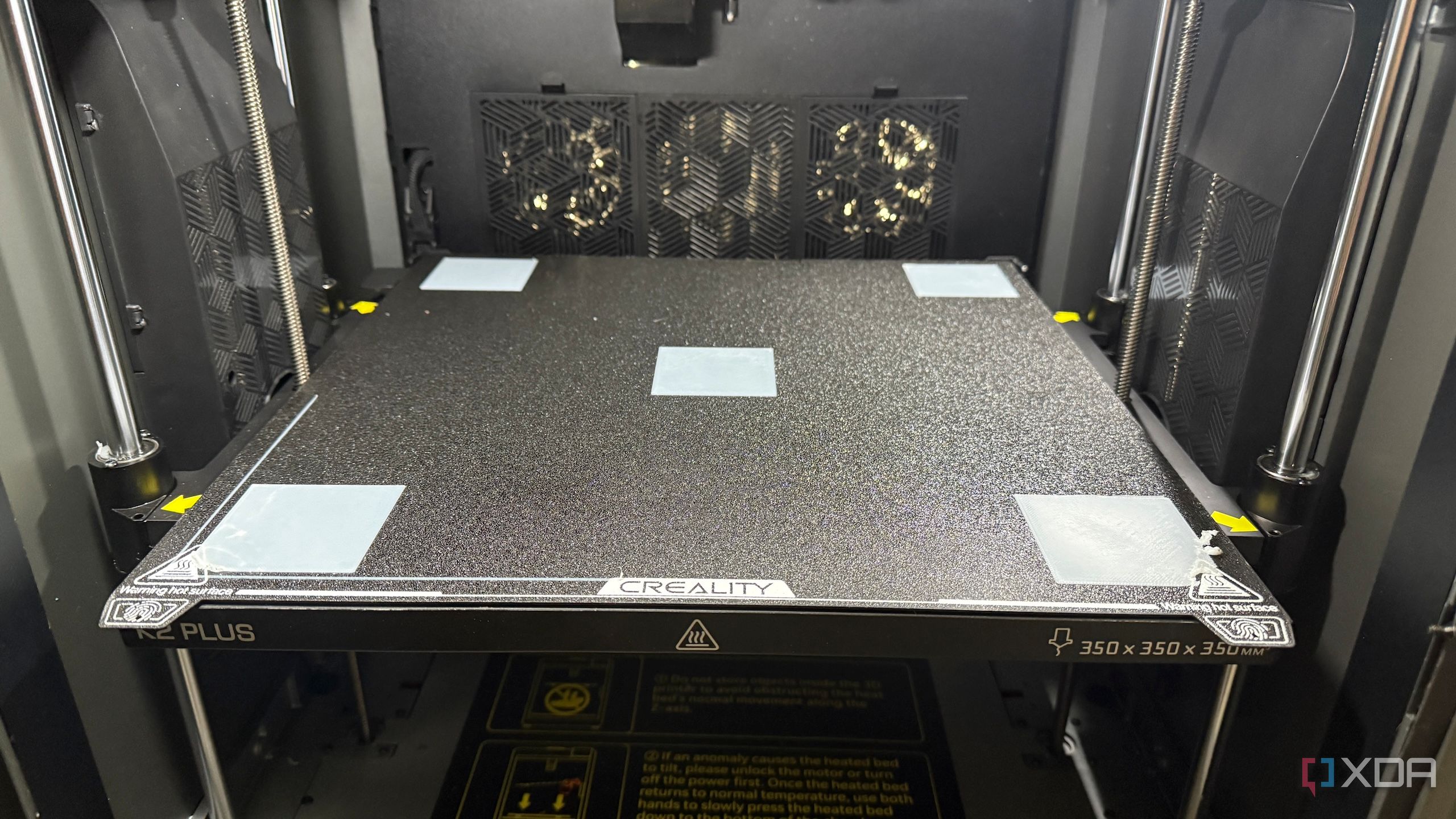

This bed leveling method transformed my 3D printing
If you're frustrated by the paper test to level the bed on your 3D printer, this method is much easier
5 Poor bed adhesion
Print not sticking properly to the build surface
When your print doesn’t stick well to the bed, warping occurs as the bottom layer lifts, causing the rest to follow. This can result in curled edges or complete detachment. Improper first-layer height, a dirty or uneven bed surface, or an unsuitable filament surface can cause bed adhesion issues. Addressing these factors is crucial for successful prints.
To resolve adhesion issues, level the bed. An uneven bed can cause inconsistent filament adhesion, leading to warping. You have to ensure the nozzle is positioned correctly. If it’s too high, the filament won’t adhere properly. If it’s too low, it can squish unevenly, affecting print quality. Adjusting the nozzle height is vital for good bed adhesion.
Clean the bed surface with isopropyl alcohol to remove oils or dust that interfere with filament adhesion. Use a suitable adhesion aid like a PEI sheet, glue stick, or blue painter’s tape for a better surface for filament adhesion. Implementing these strategies minimizes warping and ensures good print adhesion.
4 Incorrect print temperature
Too much cooling or uneven heating
Temperature plays a crucial role in preventing warping. If the print cools too quickly or unevenly, the material shrinks and pulls away from the bed. ABS is especially prone to this because of its high thermal contraction, but even PLA can warp if the environment is too cool.
10 ways to get rid of stringing in your 3D prints
When 3D printing, you might see wisps of filament in your finished product, known as stringing. Here's how to eliminate it.
Using a heated bed set to the correct temperature for your filament type can help maintain an even cooling rate. Enclosures are also effective for materials like ABS, as they trap heat and prevent rapid cooling. If your printer is in a drafty room, consider blocking airflow from fans, windows, or air conditioning vents that could cause uneven cooling.
3 Print speed and layer height issues
Printing too fast or with improper layer settings
Printing too fast can negatively impact 3D print quality. Uneven extrusion, where the filament is deposited inconsistently, leads to gaps or overflows, affecting the object’s structural integrity. Poor first-layer adhesion is another common issue, especially when printing at high speeds. The first layer forms the base, and if it doesn’t adhere properly, subsequent layers won’t have a stable foundation, increasing the risk of warping. Warping occurs when layers don’t bond well and pull away as they cool, distorting the print.
To mitigate these issues, lower your print speed, especially for the first few layers. Slowing down the first layer allows it to bond securely to the build plate, providing a solid foundation for subsequent layers. This initial slowdown significantly improves print quality. Giving the first layer enough time to adhere properly reduces warping and ensures stability throughout printing. This approach is essential for materials prone to warping, like ABS or PLA, which requires attention in the initial stages.
In addition to adjusting print speed, use a slightly higher first-layer temperature and set an appropriate layer height. A higher temperature helps the filament melt more thoroughly, improving adhesion. Adjust the layer height to a reasonable setting, typically between 0.2mm and 0.3mm for most filaments. This range balances detail and structural strength. Carefully optimizing these settings improves adhesion and reduces warping, resulting in a more successful and aesthetically pleasing 3D print.
2 Using the wrong filament for the environment
Some filaments warp more than others in certain conditions
Different filaments have different warping tendencies. Due to their high shrinkage rates, ABS, nylon, and polycarbonate are highly prone to warping, while PLA is much more forgiving. Switching to a filament with lower shrinkage might be the easiest fix if you’re printing in an open environment or without a heated bed.
7 practical 3D printing ideas that aren’t just decorative trinkets
If you think 3D printing is just for making trinkets and fidgets, check out these gorgeous and useful projects
PLA is the best option for open-frame printers because it doesn’t require a heated bed and cools without significant contraction. If you need the strength of ABS or nylon but struggle with warping, consider PETG. It’s more heat-resistant than PLA but warps less than ABS. An enclosure and proper bed preparation are essential if you must use a warping-prone filament.
1 Environmental factors
Drafts, temperature changes, and humidity impact warping
Your print environment significantly impacts print quality and prevents warping. Sudden temperature changes, drafts, and humidity affect print adhesion and cooling. Placing a printer near windows, doors, or air vents causes inconsistent cooling, leading to uneven material cooling and warping.
Use an enclosure to maintain a stable temperature, especially for materials prone to warping, like ABS. Enclosures trap heat, ensuring uniform cooling and reducing the risk of warping. If an enclosure isn't feasible, block drafts or relocate the printer to a stable environment.
Proper filament storage is equally crucial. Dry filament reduces moisture absorption, preventing extrusion issues and uneven material expansion, which encourages warping. Store filament in a cool, dry place to maintain optimal conditions for printing. This simple step improves print quality and reduces warping, enhancing your overall printing experience.
Best practices can stop warping before it ruins your prints
Warping can be frustrating, but with the proper adjustments, it’s preventable. Ensuring good bed adhesion, using the correct temperature settings, and controlling your environment contribute to better print stability. Switching to a filament with lower shrinkage or using an enclosure might be the best long-term solution if you frequently deal with warping.
By fine-tuning your setup, you’ll get cleaner prints with fewer failures. Every printer and filament combination is different, so experiment with these fixes to find what works best for you. With the right approach, warping won’t stand in the way of your 3D printing projects.
