Intel Arc B570 Graphics Performance On Linux

Written by Michael Larabel in Graphics Cards on 16 January 2025 at 09:00 AM EST. Page 2 of 9. 27 Comments.

For this testing the following graphics cards were tested in building off the tests that began in December:

- Intel Arc A580
- Intel Arc A750
- Intel Arc A770
- Intel Arc B570
- Intel Arc B580
- NVIDIA GeForce RTX 4060
- NVIDIA GeForce RTX 4070
- NVIDIA GeForce RTX 4070 SUPER
- AMD Radeon RX 7600
- AMD Radeon RX 7600 XT
- AMD Radeon RX 7700 XT
- AMD Radeon RX 7800 XT

With the OpenCL compute benchmarks later in this article are some additional cards. Similarly for the workstation tests is exposure against Radeon PRO and NVIDIA RTX hardware.

👁 Intel Arc B570 graphics on Linux

Given the recent Battlemage/Xe2 driver improvements, the Arc B580 was re-tested alongside the Arc B570 using the newer Linux 6.13 Git revision by a few weeks paired with the latest Mesa 25.0-devel snapshot from the Oibaf PPA.

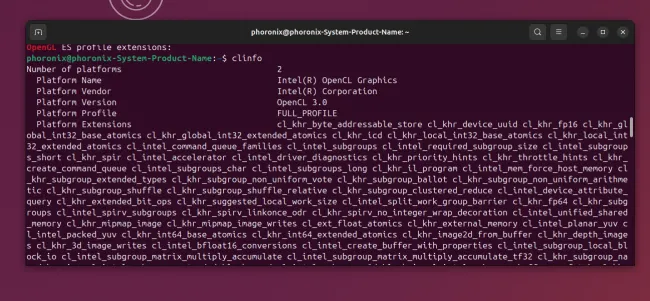

👁 Intel Arc B570 open-source OpenCL

The Battlemage GPU compute / OpenCL benchmarks were carried out using the new Compute Runtime 24.52.32224.5 release that also brings BMG/Xe2 improvements.

Testing was done on the same Intel Core Ultra 9 285K Arrow Lake system with ASUS ROG MAXIMUS Z890 HERO motherboard, 4TB WD_BLACK SN850X NVMe SSD, and 2 x 16GB DDR5-6400 Micron CP16G64C38U5B.M8D1 memory while running Ubuntu 24.10. The NVIDIA 565.57.01 drivers were used for the GeForce graphics card testing while Intel and AMD were on their upstream Linux 6.13 and Mesa 25.0-devel open-source drivers.
