Canvas and UI Elements In Unity

Every game needs a user interface (UI) for scores, menus, health bars, buttons. In Unity, all UI elements live inside a Canvas. This article explains what Canvas is and how to create basic UI elements.

Canvas

Canvas is like a transparent sheet that sits on top of your game screen. Everything you put inside it appears to the player.

• Canvas automatically scales with different screen sizes.
• All UI elements (Text, Buttons, Images) must be children of a Canvas.
• Unity creates Canvas automatically when you add your first UI element.

Creating UI Elements

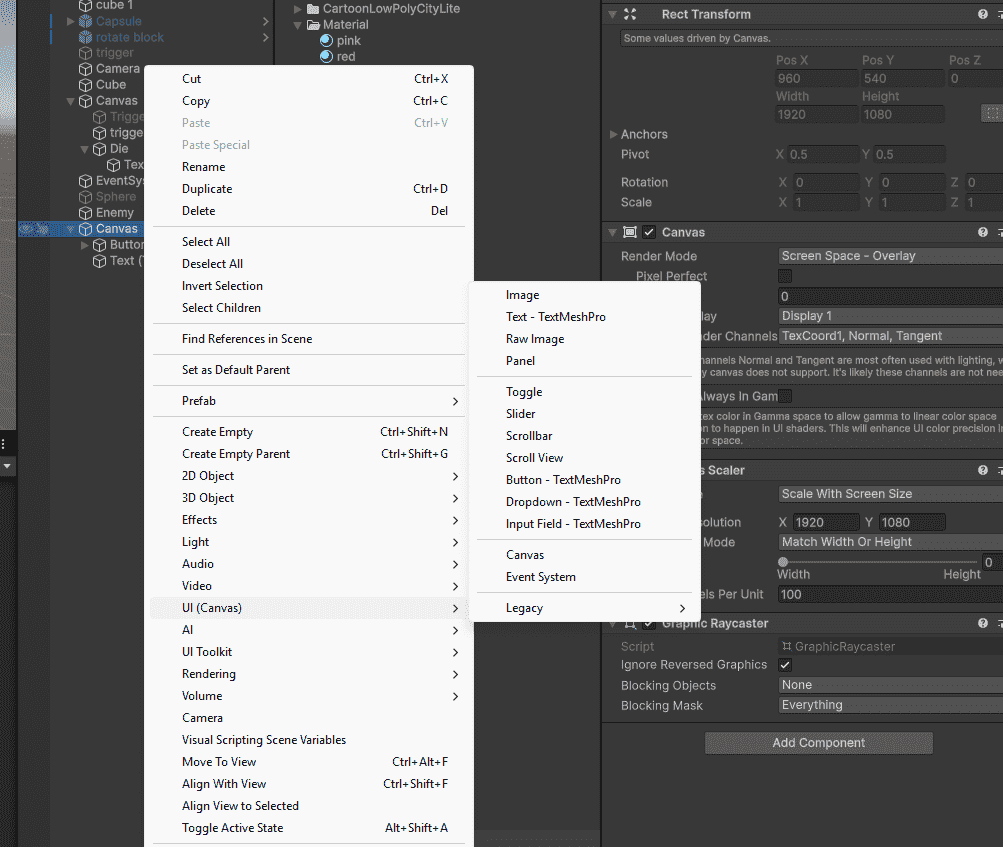

Right-click in Hierarchy - UI - Select any element (Text, Button, Image) Unity automatically creates three things:

• Canvas: The container for all UI.
• EventSystem: Handles clicks and interactions (required for buttons).
• UI element: Text, Button, or Image.

Types of UI Elements

• Text: Displays information like score, health, timer
• Button: Clickable element that triggers actions
• Image: Shows sprites (icons, backgrounds, health bar fill)
• Panel: Container to group multiple UI elements
• Slider: Draggable bar (volume control, health bars)
• Input Field: Allows player to type text

RectTransform vs Transform

UI elements use RectTransform instead of regular Transform.

• RectTransform adds extra properties: Width, Height, Anchors, Pivots
• Anchors determine how UI element behaves when screen resizes
• Regular Transform is for 3D objects in game world

Positioning UI Elements

Use the Rect Tool (shortcut T) to move, resize and rotate UI elements.

• Click and drag edges to resize
• Click and drag inside to move
• Hold Shift to maintain aspect ratio

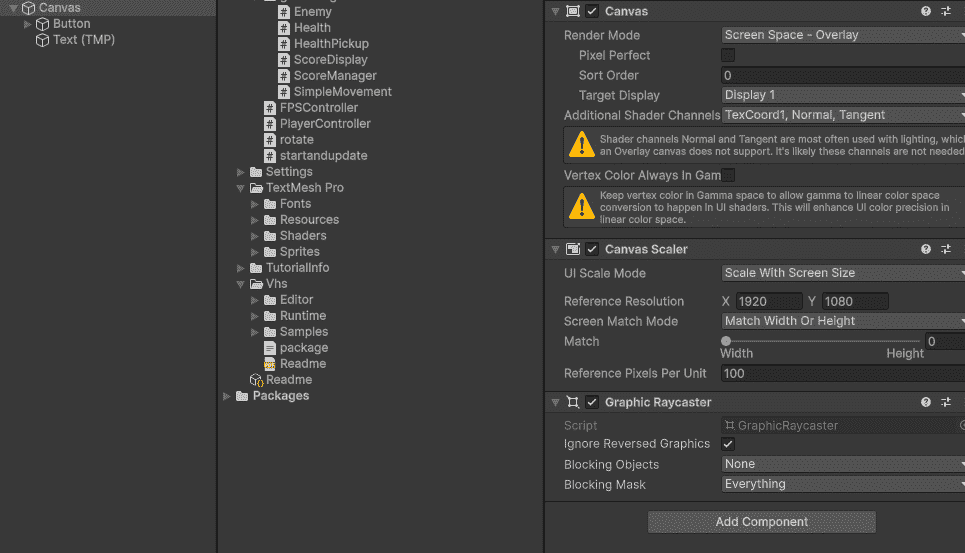

Canvas Render Modes

Canvas has three render modes that change how UI appears:

Screen Space - Overlay (Default)

• UI always on top of everything
• Best for most games (HUD, menus)

Screen Space - Camera

• UI renders in front of a specific camera
• Used for 3D UI effects

World Space

• UI exists as a physical object in game world
• Used for floating health bars above enemies
