Trigger Events In Unity

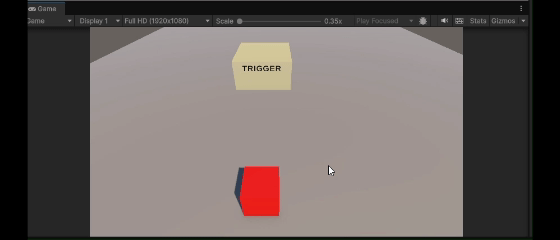

Trigger events are Unity's way of telling you when an object enters, stays inside, or exits a trigger zone. The objects pass right through each other with no bouncing, no stopping, no physics reaction.

• Requires Collider marked as Is Trigger
• Objects don't physically block each other
• Perfect for pickups, zones and area detection

Trigger Event Methods

Unity provides three trigger events that you can use in your scripts. Example:

• OnTriggerEnter: Most commonly used (collecting, activating, damaging)
• OnTriggerStay: Use for continuous effects (poison zone, healing area)
• OnTriggerExit: Use for leaving detection (exit message, disable effect)

Collider Parameter

It gives you access to the object that entered. Example:

• other.gameObject: The GameObject that entered the trigger
• other.tag / other.CompareTag(): Check what type of object
• other.GetComponent<T>(): Access components on the entering object

Setting Up a Trigger

To create a trigger zone:

1. Create a GameObject (Cube, Sphere, or empty)
2. Add a Collider component
3. Check the Is Trigger checkbox in Inspector
4. Adjust size and position of the collider
5. (Optional) Disable Mesh Renderer to make it invisible

Requirements for Trigger Events

For OnTriggerEnter/Stay/Exit to work:

• At least one object must have a Collider marked as Is Trigger
• The entering object needs a Collider (can be any type)
• Rigidbody is optional (unlike collision events)

This makes triggers more flexible than collisions:

• Trigger can detect objects with or without Rigidbody
• Trigger itself doesn't need Rigidbody at all

Practical Examples

Example 1: Coin Collection

Example 2: Checkpoint Activation

Example 3: Door that opens when player approaches

When to Use Which between Trigger and Collision

Use Triggers when:

• Objects should pass through each other
• Collecting items (coins, power-ups)
• Area detection (checkpoints, quest zones)
• Damage zones where player walks through
• Dialogue activation when entering an area

Use Collisions when:

• Objects should physically block each other
• Walls, floors, obstacles
• Pushable objects
• Platform ground detection

When both can be used together:

• Same object can have both a solid Collision and a separate Trigger zone
• Example: Enemy has solid body (Collision) + detection radius (Trigger)

Layer Settings with Triggers

Use layers to control which objects trigger your zones:

1. Assign different layers to objects (Player, Enemy, Projectile)
2. Edit - Project Settings - Physics
3. Set Layer Collision Matrix

Example use cases:

• Trigger only detects Player, ignores Enemies
• Bullet trigger hits Enemies but passes through Allies
• Different triggers for different object types

Performance Considerations

• Keep trigger code fast – OnTriggerStay runs every frame
• Use CompareTag() instead of comparing tag strings directly
• Avoid GameObject.Find() inside trigger methods (cache references instead)
• For many triggers, use layers to filter unnecessary objects early

Common Mistakes

• Using OnCollisionEnter when Is Trigger is checked – Won't work, use OnTriggerEnter
• Forgetting to enable Is Trigger – OnTrigger methods won't fire
• Expecting physical blocking with triggers – Triggers don't block movement
• Heavy code in OnTriggerStay – Runs every frame, keep it lightweight
• Not disabling trigger when object is destroyed – Can cause null reference errors
